Prediction with Classification in Azure Machine Learning

October 30, 2020 by


After discussing Regression in the previous article, let us discuss the techniques for Classification in Azure Machine learning in this article. Like regression, classification is also the common prediction technique that is being used in many organizations. Before the regression we have discussed basic cleaning techniques, feature selection techniques and Principal component analysis in previous articles, now we will be looking at data classification techniques in azure machine learning in this article.

Different Types of Classification Techniques

The Classification technique is used to classify and can be used to determine risk and non-risk customers for a banking sector, detect spam or non-spam emails, identifying whether the prospective customer will buy a bike or not, classify plants and animals.

There are different classification techniques available in Azure Machine Learning to support various features as shown in the following screen.

Techniques available for Classification in Azure Machine Learning.

As you see in the above screenshot, there are so many classifications options in Azure Machine Learning and from which you can use for different purposes. Therefore, it is essential to choose the correct Classification that suits your data.

Mainly classification algorithms have two types of algorithms, Two-class and Multi-Class. Two class algorithms are much suited for data that has two classes. For example, a bike buyer has two classes such as bike buyers or not. The multi-class algorithm is used to classify data set with multiple classes. For example, if you want to classify animals, you need to use multi-class classification algorithms.

Let us see the basic properties and usage of techniques of classification in Azure Machine Learning in the following table:



Multiclass Logistic Regression

Fast training Time, Linear Model

Multiclass Neural Network

Higher accuracy, larger training times

Multiclass Decision Forest

Higher accuracy, faster training times

Multiclass Boosted Decision Tree

Scalable faster training time.

Two-class Support vector machine

A Linear model for data set with less than 100 features

Two-class averaged perception

Linear and faster training model.

Two-class decision forest

Higher accuracy

Two-class Logistic Regression

Linear and faster training model.

Two-class Boosted Decision Tree

Higher accuracy but more resources are consumed.

Two-class Neural Network

Higher accuracy but more training time is required.

Let us see how to create an experiment with the utilization of Classification technique in Azure Machine Learning.

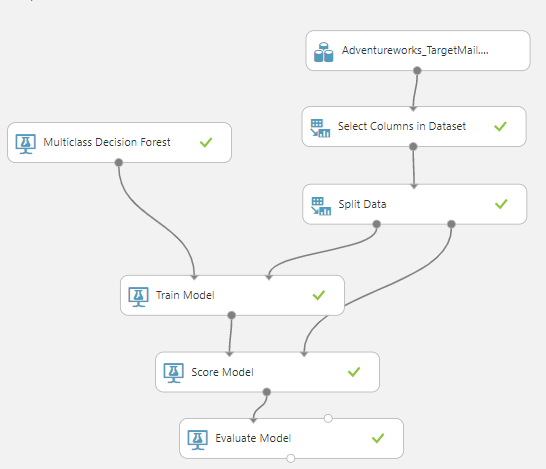

The Sample experiment for the Classification technique.

Though we discussed how to create an experiment in Azure Machine Learning, let us quickly walk through how to create an experiment.

First of all, let us use the sample AdventureWorks data set. Since we don’t need all columns, such as an address, name, etc., we will select only the columns that we think will contribute to the bike buyer. To select the necessary columns, we will use Select Columns in Dataset Control. In the case of prediction, we need a dataset to be divided into train and test that is done from Split Control. In this, we have divided the dataset with a 70/30 rule. Then the train data set is linked to the train model control and in the train model control, we have used the BikeBuyer column as the prediction column. The train model is fed with the different classification models which will be discussed later in the article. After the model is trained Score model is used to test the model by feeding the test dataset to the Score Model. Finally, the evaluation is done from the Evaluate Model control.

The output of the Evaluate model is differs depending on whether the algorithm is a multi-class or two-class. The Multi-class classification can have multiple classifications such as multiple animals, multiple plant types etc. In the two-class classification, there will be only two classes of classification such as whether the bike buyer is not, whether the mail is spam or not etc.

Let us first look at the Evaluation in the Multiclass for the Classification in Azure Machine Learning.

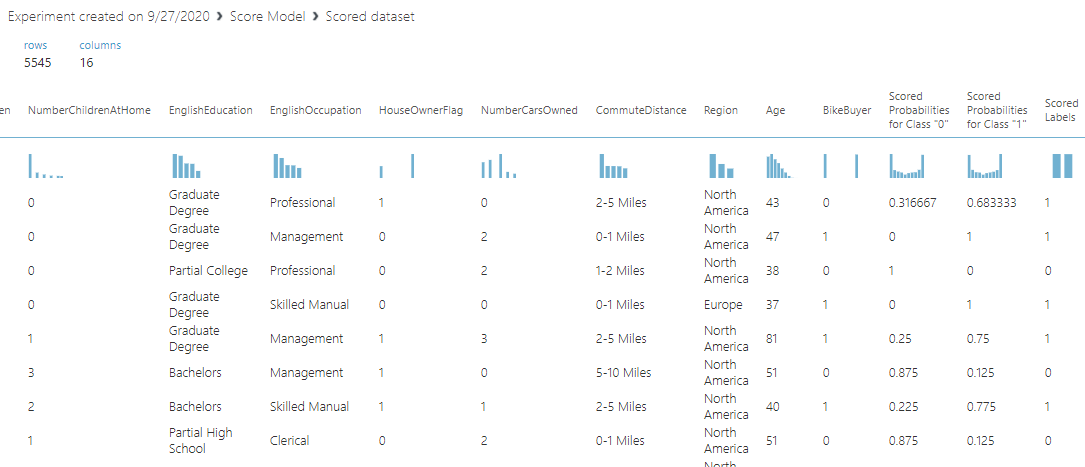

Output of the Scored Model which has added three additional columns to evaluate the model.

In the above screenshot, you can see that there are three additional columns that are included in the output for classification in Azure Machine Learning. These additional columns indicated what are the probabilities for each class. Scored labels will be the class that has the highest probability.

The following table shows different evaluation parameters for different multi-class algorithms in classification.




Multiclass Decision Forest




Multiclass Decision Jungle




Multiclass Logistic Regression




Multiclass Neural Network




Let us look at the evaluation of two-class classification which is different from the multiclass classification technique in Azure Machine Learning.

There are three charts to evaluate the two-class classification in Azure Machine Learning. One of them is the ROC curve. ROC or Receiver Operation Curve is a visual tool to find the accuracy of the model. Ideally, the ROC curve should be over the random as shown in the below screenshot.

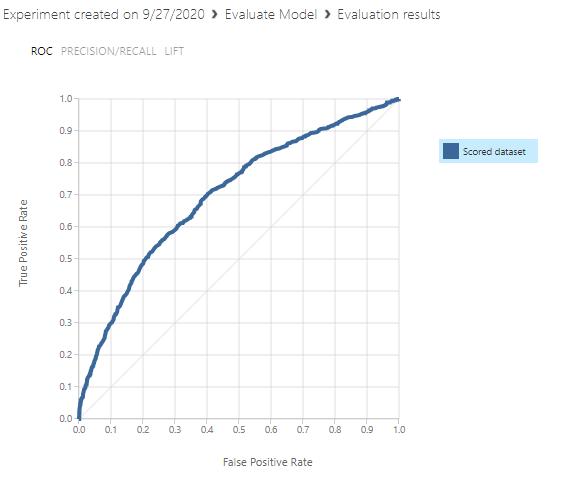

ROC chart in the Classification in Azure ML

As you see in the above screen, the ROC curve is higher than the standard normal curve.

The next important graph is the PRECISION and RECALL graph.

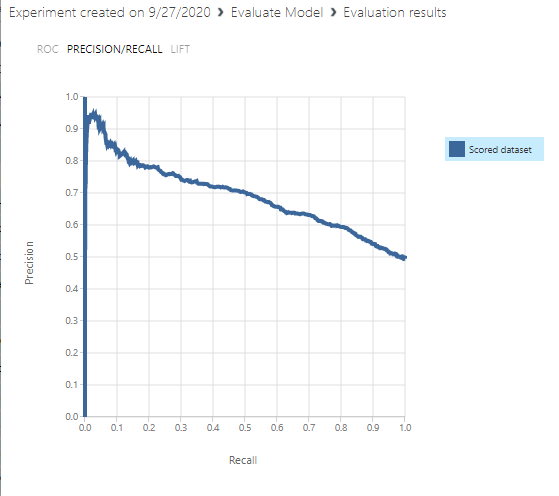

Precision Recall chart

Precision is out of the predicted positive the data set how much is actually positive and recall is out of actually positive, how much is predicted as positive. Depending on the case, you might be looking at better precision or recall.

The Lift chart is another chart that is shown in the next screenshot.

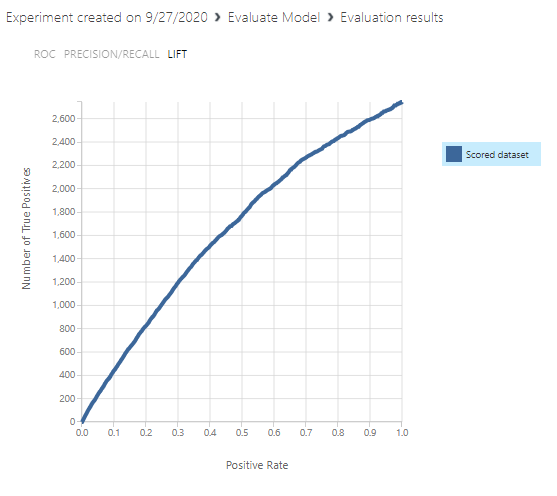

LIFT chart in the Azure Machine Learnign for Two-Class classfication algorithms.

The confusion matrix is an important matrix to evaluate classification in Azure Machine learning.

The confusion matrix in classification in Azure Machine learning.

F1 score which is the harmonic mean of precision and recall is another important measure that can be retrieved in the techniques of Classification in Azure Machine Learning. However, the most correct accuracy measure in two-classification techniques is Matthews correlation coefficient or MCC. This is not available in Azure Machine Learning.

Let us compare the evaluation parameters for different classification techniques.





F1 Measure

Two-Class Averaged Perceptron





Two-Class Bayes Point Machine





Two-Class Boosted Decision Tree





Two-Class Decision Forest





Two-Class Decision Jungle





Two-Class Locally-Deep Support Vector Machine





Two-Class Logistic Regression





Two-Class Neural Network





Two-Class Support Vector Machine





By observing the above table, it can be seen that Two-Class Boosted Decision Tree has better accuracy for this data set. However, Two-Class Decision Forest has marginally higher precision than Two-Class Decision Tree. This shows that depending on the need and the data set, you need to choose the correct techniques o classification in Azure Machine Learning. Further, there are different parameters for each technique that has to be configured in order to define a better model for prediction using classification techniques.

After the model is created, the next task is to perform prediction as we did in the previous articles. For this, we need to deploy the model as a web service from the Azure Machine Learning.

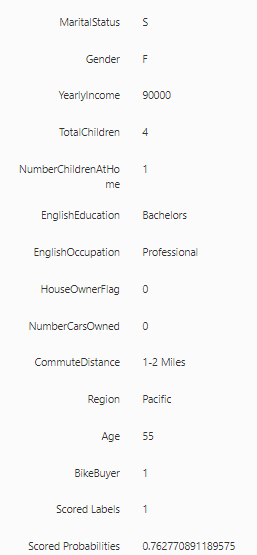

Prediction using Classification in Azure Machine Learning.

Once you provide data, web service will predict whether the prospective customer is a bike buyer or not. In the above example, the customer is a bike buyer with a 77% probability.


In this article, we looked at different algorithms for Classification in Azure Machine Learning. In azure machine learning, there are rich controls to model Classification. There are mainly two types of classification which are multiclass and two-class. There are several evaluation techniques in classification such as Accuracy, Precision, Recall and F1. The two-class classification has many graphs to define the accuracy of the models, such as ROC and LIFT charts.
