In this 35th article in SQL Server Always On Availability Groups, we will implement a custom policy for monitoring AG groups.

Introduction

The previous article, The Hub and Spoke model of Policy-based Management for SQL Server Always On Availability Group explores the following topics:

  • Policy-Based Management (PBM) components
  • AG replica health model
  • Explore PBM policy categories for Always On
  • Evaluate policy and view conditions states
  • Integrate the AG dashboard and its equivalent PBM policy

SQL Server integrates a few systems defined PBM policy, conditions for monitoring purposes. However, you might want to customize the AG dashboard or AG health model as per your requirements. Let’s begin our journey for a custom AG policy.

The Custom Policy for SQL Server Always On Availability Groups

Suppose you implemented a two-node synchronous commit replica for your environment. In the synchronous replica, primary waits for transaction commit acknowledgement from the secondary replica. In this case, your secondary asynchronous replica might be lagging depending upon your transactions, network bandwidths.

You do not want your secondary replica to lag behind more than 30 minutes. If it lags, the PBM policy evaluation should fail. The AG dashboard should show a warning in the AG dashboard regarding the sync lag. Similarly, this policy also evaluates whether the estimated recovery time is less than 5 minutes or not.

Define the conditions

Previously, we learned about the different parts of defining policy in the hub-spoke model of policy-based evaluation for the SQL Server. It starts with defining the conditions that your policy will evaluate. To define a condition, connect to the primary replica in SSMS and navigate to Management-> Policy Management->Conditions. Here, right-click on Conditions and select New Condition.

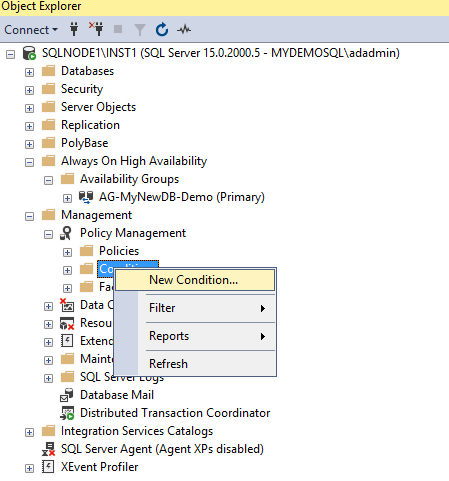

Define a new condition

In the Create New Condition window, enter the following values.

  • Name: Specify a condition name
  • Facet: As we described earlier, a facet is a set of logical properties. We need to select the facet to define the expressions for a condition. You can browse the available facet and choose the properties that suit your requirements

    For our demonstration, we use the Database Replica State that contains the properties for an AG database replica

  • Expression: Here, we define the Boolean expressions for policy evaluation. From the field section, select the field, operator and specify the value for your condition. During the policy evaluation, if the conditions are not met (The boolean expression is false), it returns an error

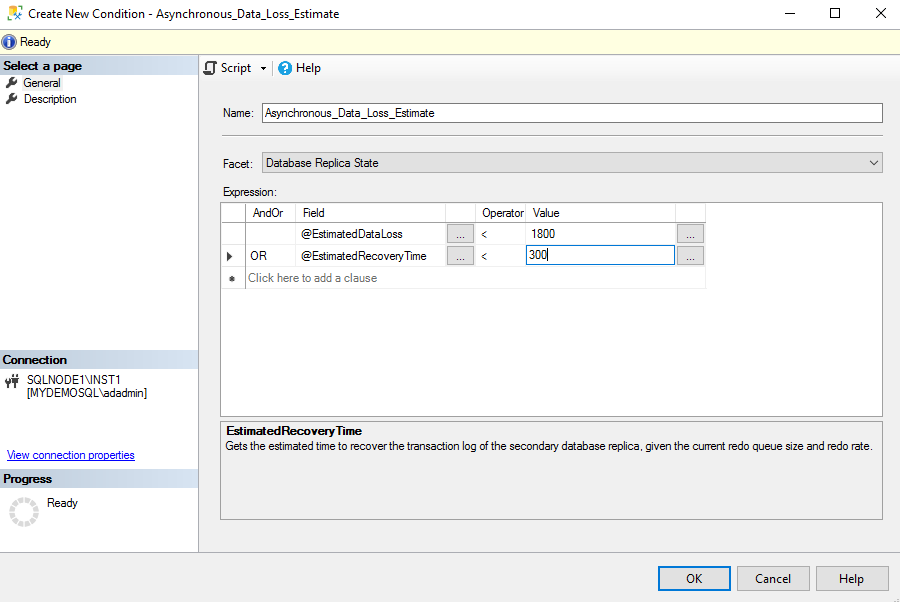

Choose facet and thresholds

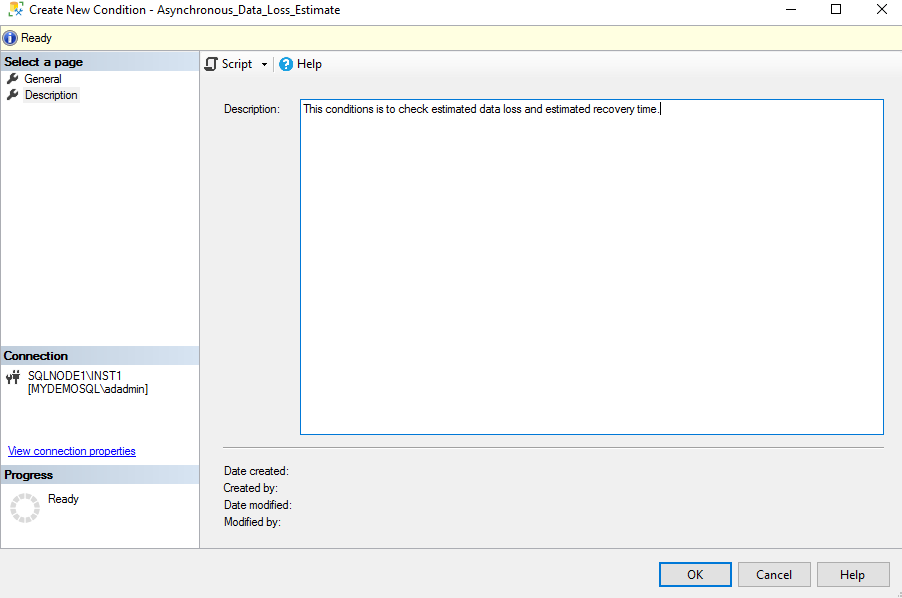

You can specify the optional description to describe the conditions for your team members.

Describe the conditions

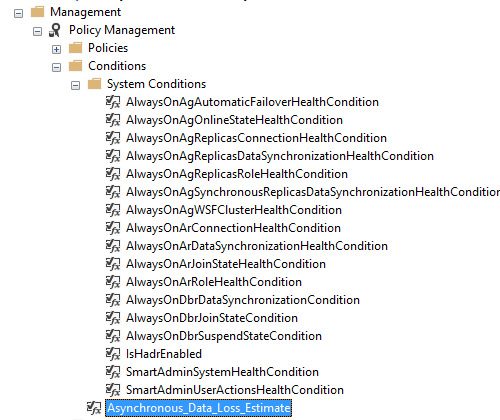

Click Ok, and it creates the conditions for PBM, as shown below.

View custom conditions

Create a Policy for the defined condition

Once we have defined the condition, we can create a policy for PBM. To create the policy, in the primary replica SSMS connection, navigate to Management->Policy Management-> Policies. Right-click on the Policies and choose New Policy.

Enter the following values for a PBM policy:

  • Name: Enter a policy name
  • Check Condition: In the check condition column, select the defined policy from the drop-down. It automatically selects the PBM targets
  • Evaluation mode: By default, the policy evaluation mode is On Demand. We can schedule it as well, but for the AG dashboard, it is acceptable to run while we run the evaluation

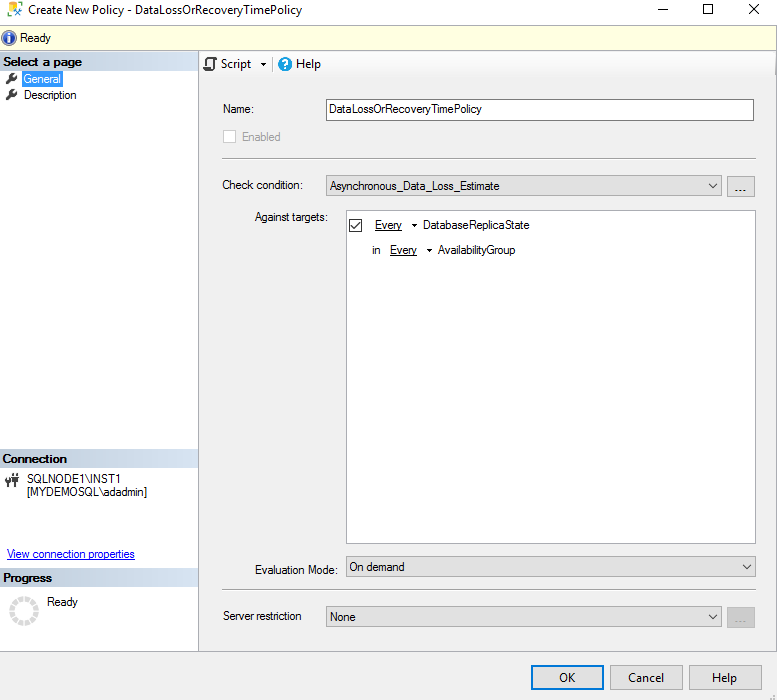

Create a Policy for the defined condition

Now, click on the description from the left-hand menu. In this page, we can select in case of policy failure, AG dashboard displays it as an error or warning. Here, select the appropriate category for the PBM policy. As we want to use a warning for policy evaluation failure, we select the Availability database warnings category.

Put an optional description and text to display. You can put a familiar message or the suggested steps to take in case of policy failure.

It also allows you to specify a URL. For example, you defined policy, and in case of a policy failure, you want to follow specific steps from a specified URL, enter the URL address here.

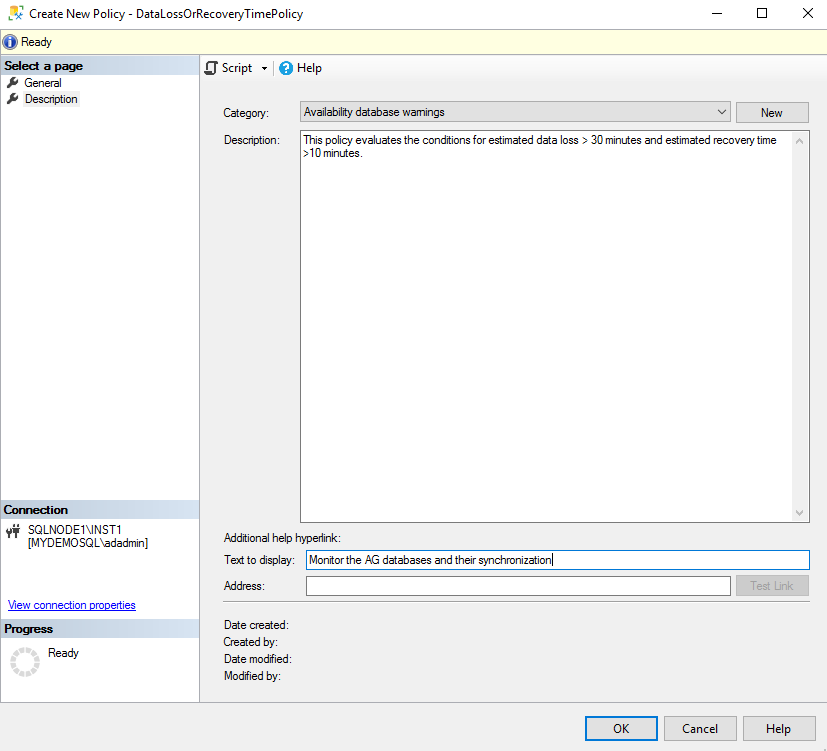

Availability database warnings category

Click Ok, and it creates a policy for SQL Server Always On Availability Group as shown below.

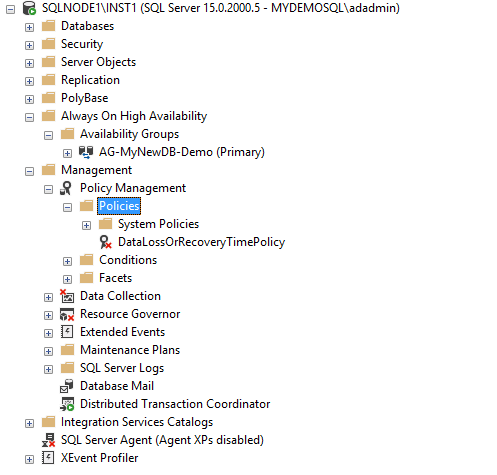

SQL Server Always On Availability Groups

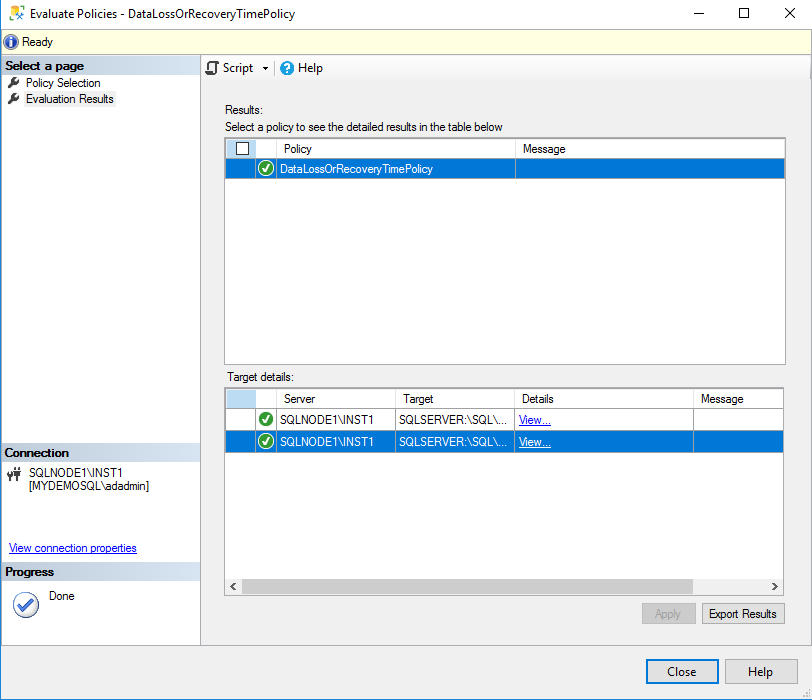

Let’s evaluate the policy manually. It evaluates successfully, as shown below.

Evaluate the policy manually

Click on the view to get details of the conditions to check. In the detailed view, we see the followings:

  • Boolean expression expected and actual value. For a successful policy evaluation, the actual value should meet with the expected value or range
  • Policy description: Here, it shows the text we entered in the policy description
  • Additional help: In the additional help, it shows the text to display string. If you specified a URL in the Policy address field, it shows a hyperlink in the additional help section

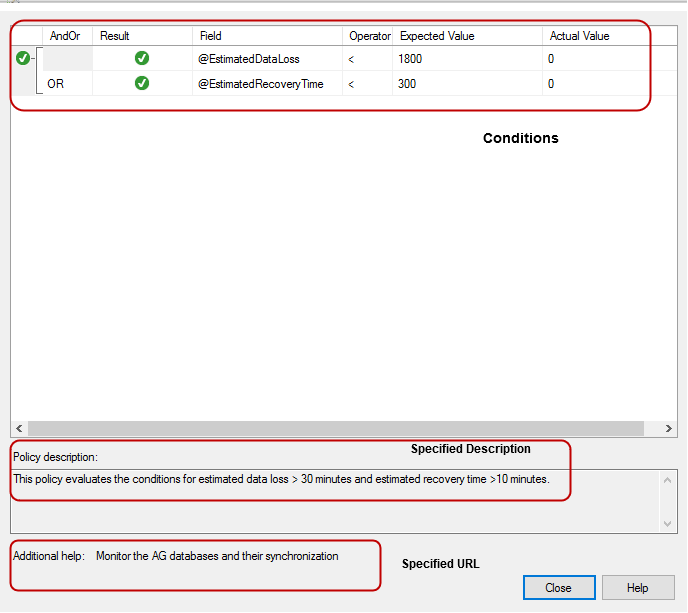

Get details of the conditions

Enable User-Defined Policies in Availability Group dashboard

By default, SQL Server Always On Availability Group dashboard, runs the system defined policies that we explained earlier. Now, to implement an additional user-defined policy, we need to modify the properties in SQL Server Management Studio.

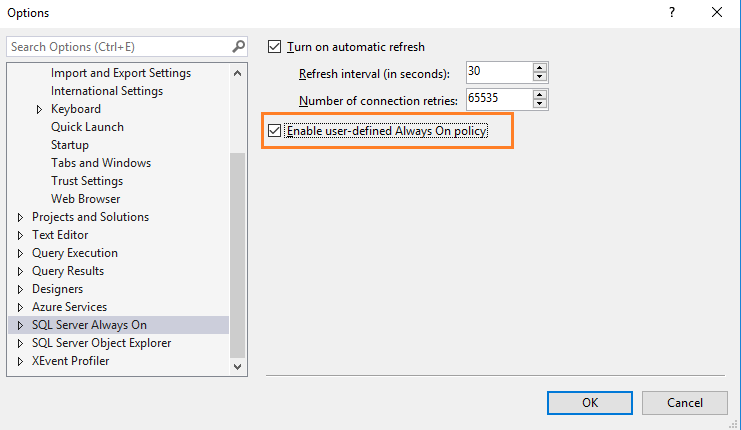

Navigate to SSMS Tools->Options -> SQL Server Always On. In this option, put a tick on the enable user-defined Always On Policy checkbox as highlighted below.

Enable User-Defined Policies in Availability Group dashboard

It implements the user-defined policy for SQL Server Always On Availability Group. You can refresh the AG dashboard or relaunch the dashboard to see it in action.

User-defined policy in action

For demonstration purposes, I modify the condition so that it fails the evaluation intentionally and displays a warning in the AG dashboard.

The updated policy conditions are shown below. Ideally, the estimated data loss should be zero for a healthy AG replica. In this case, we modified the condition that policy evaluates successfully if it is less than zero.

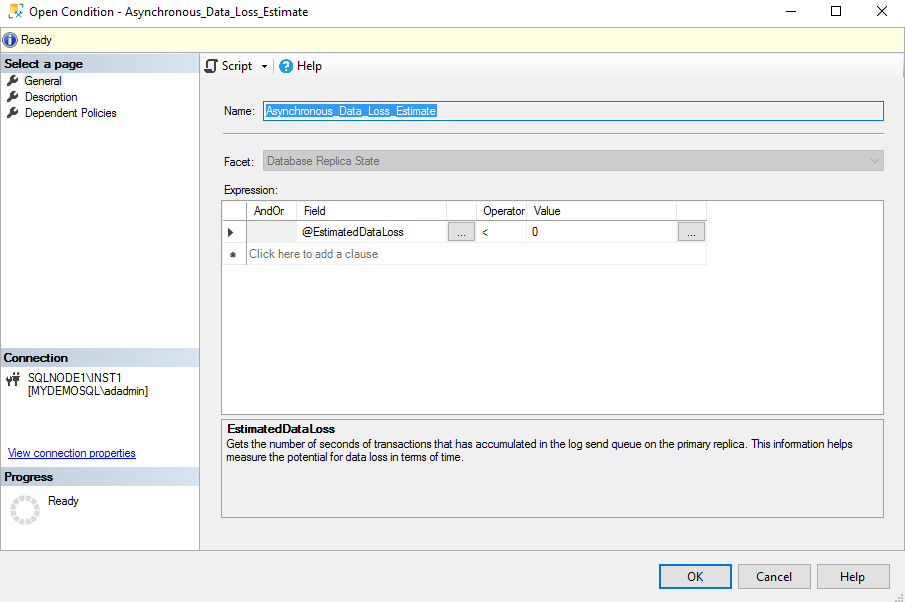

User-defined policy in action

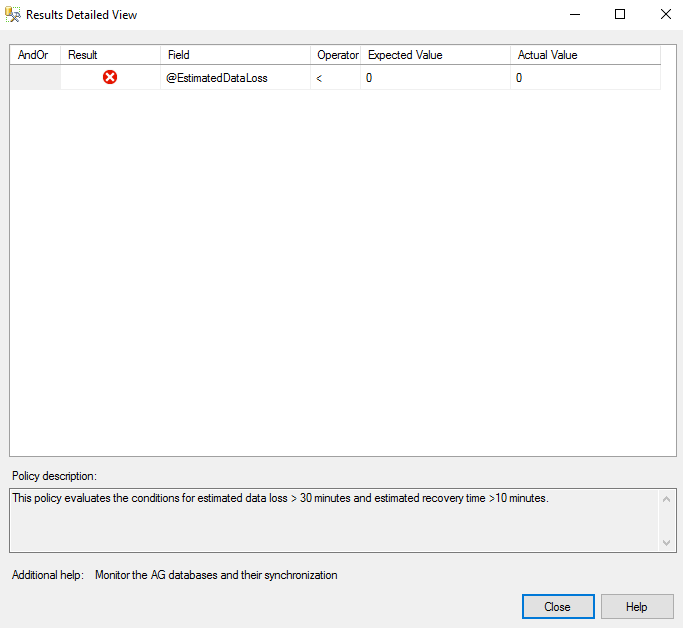

Click Ok and evaluate the policy manually. It fails because policy expects the estimated data loss less than zero, but the actual value is zero.

Estimated data loss less than zero

Now, launch the AG dashboard, and you see a warning symbol for the secondary replica.

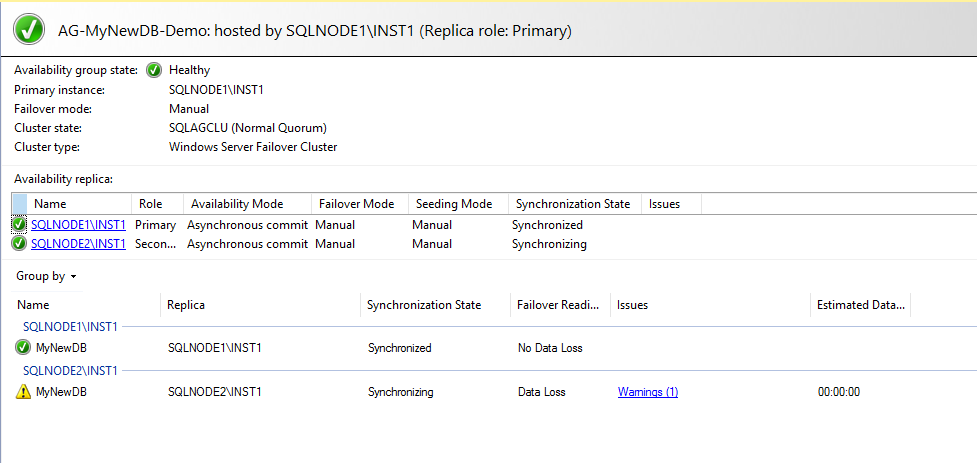

Warning symbol for the secondary replica

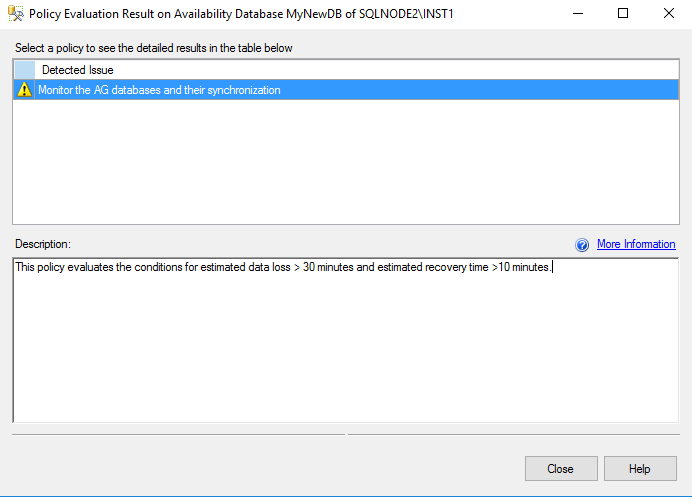

Click on the warnings(1), and it shows the policy evaluation result. It failed, and you get the description for that we specified during policy creation. It is the reason you should specify an accurate description so that DBA’s can read it and take action accordingly.

Policy evaluation result

AG Failover and Custom policies for SQL Server Always On Availability Groups

It would be best if you defined the custom policies on all participating nodes in SQL Server Always On Availability Group replicas. Let’s perform a manual failover and verify if the custom policies are available on the secondary replica (after failover new primary replica) as well.

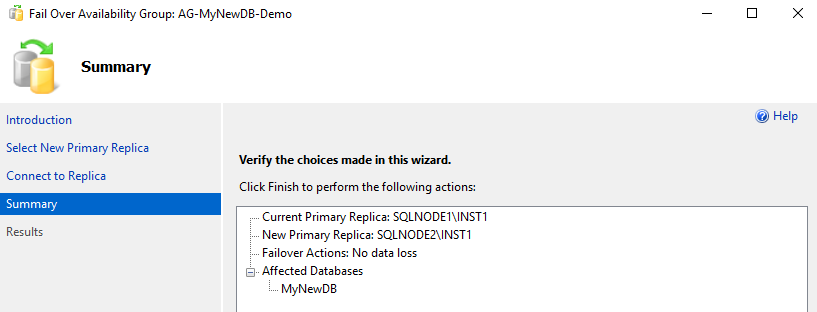

Before failover changes the synchronization to Synchronous mode and initiates a manual failover as shown below, the new primary replica is SQLNode2\INST1.

Initiate an AG failover

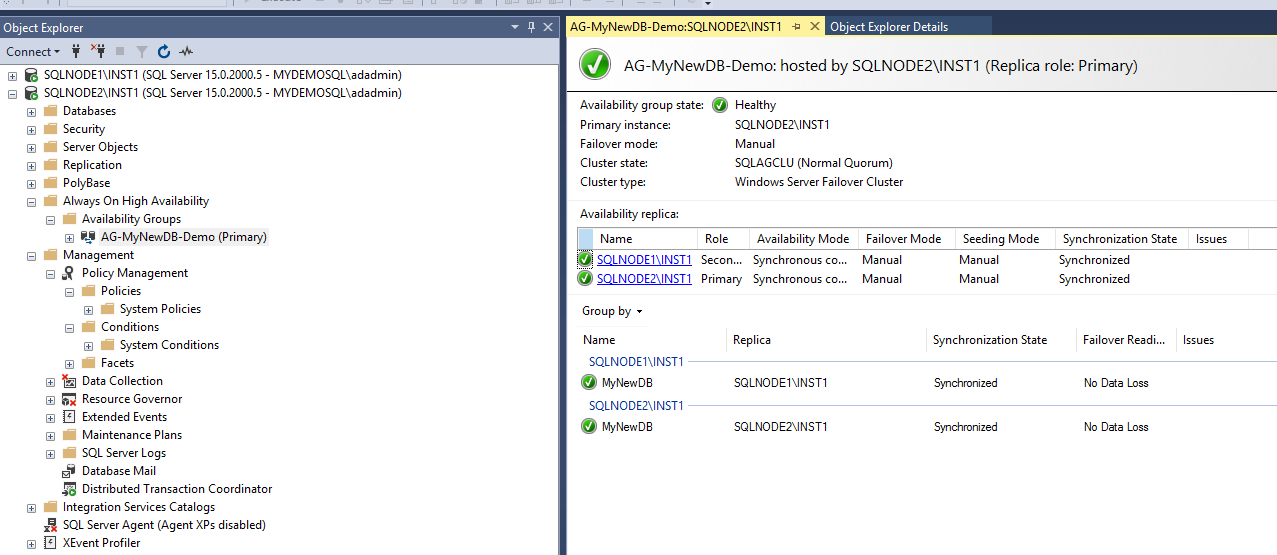

My AG dashboard looks healthy after the failover, and we do not have the custom policies in the new primary replica instance SQLNode2\INST1.

AG dashboard looks good

It shows that if we deploy a custom policy, you need to implement on all participating replicas in SQL Server Always On Availability Group.

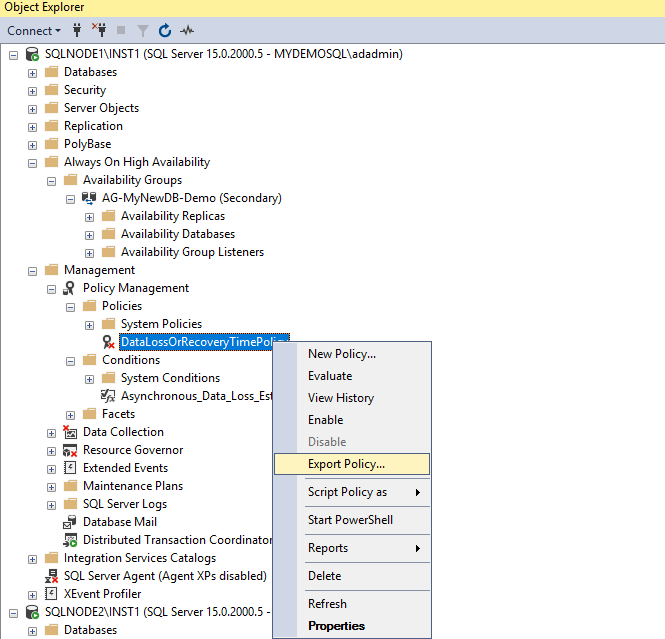

We can still connect to the old primary replica (current secondary replica) and export the policy. Right-click on the policy you wish to export and click on Export Policy…

Export Policy

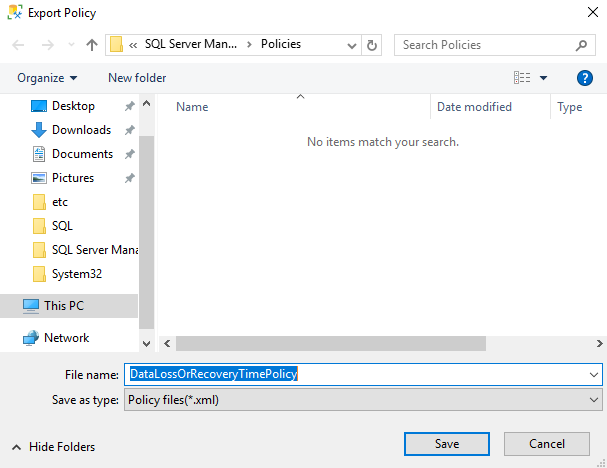

It generates an XML for the policy.

XML for the policy

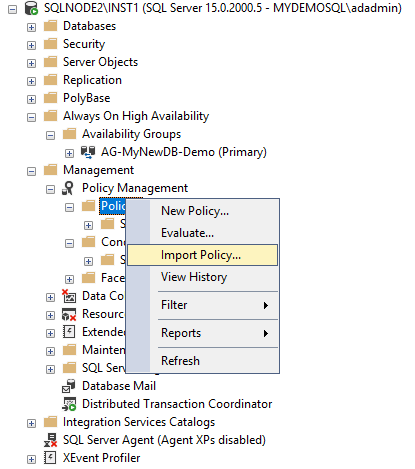

Click on Save and copy this policy XML file into the new primary replica. In the new primary replica, right-click on Policies and Import Policy.

Import Policy

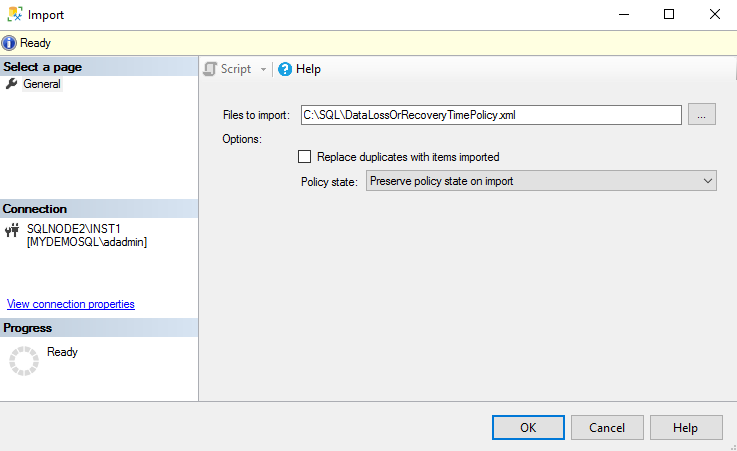

Specify the policy path and import it with the default options. You can choose to override or replace duplicates with items imported.

Specify the policy path

Now, you get the policy and its defined condition in the new primary replica, as shown below.

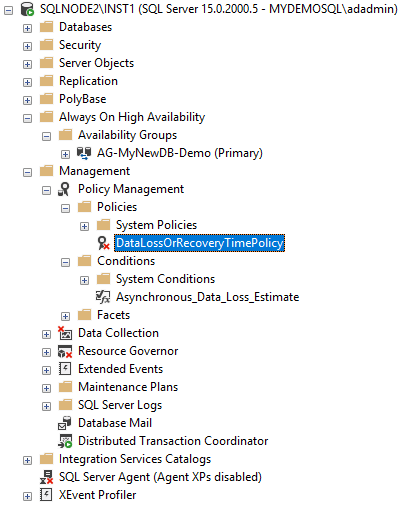

Defined condition in the new primary replica

You might need to change the SSMS configuration for the user-defined policy in the AG dashboard if you are connecting it from a different SSMS.

SSMS configuration

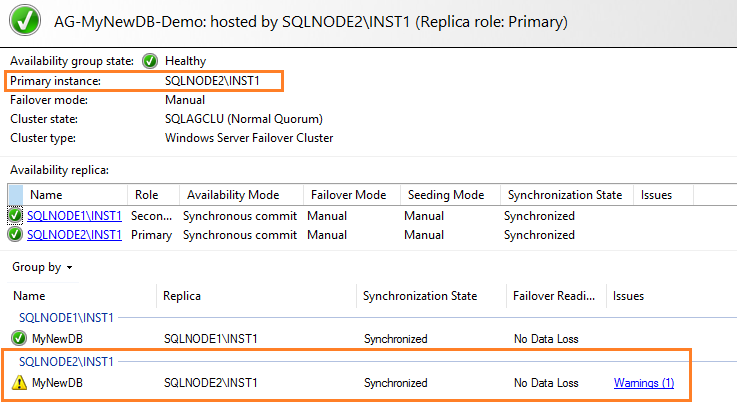

Now, relaunch the AG dashboard. We see that despite the no data loss in the failover readiness, we see the secondary replica shows a warning. It is due to our policy that we intentionally modified to generate a warning in the AG dashboard.

Relaunch the AG dashboard

Conclusion

In this article, we explored defining and deploying a custom policy to monitor the SQL Server Always On Availability Group using the AG dashboard. You can define the policies and their conditions as per your requirement and deploy to satisfy your requirement. You should carefully define these policies and conditions as the irrelevant policy can increase your team efforts irrespective of AG is working fine or not.
