Manticore search: a continuation of the Sphinx search engine

September 14, 2020 by

In this article, we will be talking about Manticore Search, which is an open-source search engine first released in 2017 as a fork of the Sphinx search engine. We will try to describe this search engine briefly, mention some of its differences from the Sphinx search engine, and we will provide a step-by-step guide on how to build full-text indexes from SQL Server databases. Finally, we will show how to connect to the Manticore engine from the SQL Server management studio using a linked server object. In our previously published articles in this series, we talked briefly about the Sphinx search engine and how to create full-text indexes from SQL Server databases.

Introduction

One important thing we forgot to mention in the previously published articles is that at the end of 2016, the Sphinx development and support was suspended and there was a risk that it would never continue. For this reason, some former Sphinx Technologies employees with the help of some companies that were using the Sphinx search engine started – in May 2017 – decided to develop a new search engine starting from a fork of the latest release of the Sphinx search engine (2.3.2 beta) in order to provide support for existing Sphinx clients, increase the product stability, and to continue development. This fork was named later “Manticore Search”. Note that in December 2018, Sphinx search engine development resumed, and version 3.0.1 was released, but it is not open-source anymore.

In this article, we cannot provide a full comparison between both products. But, a quick tour in the Sphinx search engine and the Manticore search websites let you know the difference between both companies’ productivity. In addition, the Manticore search website contains many comparisons between Manticore and Sphinx releases. As an example:

In the rest of this article, we will show how to install the latest version of Manticore (3.5.0) on Windows and how to build full-text indexes from SQL Server tables.

Manticore Installation

To download the latest release of Manticore, you should open the Manticore home page, go to the downloads page, beside the Windows icon, click on the 64-bit hyperlink.

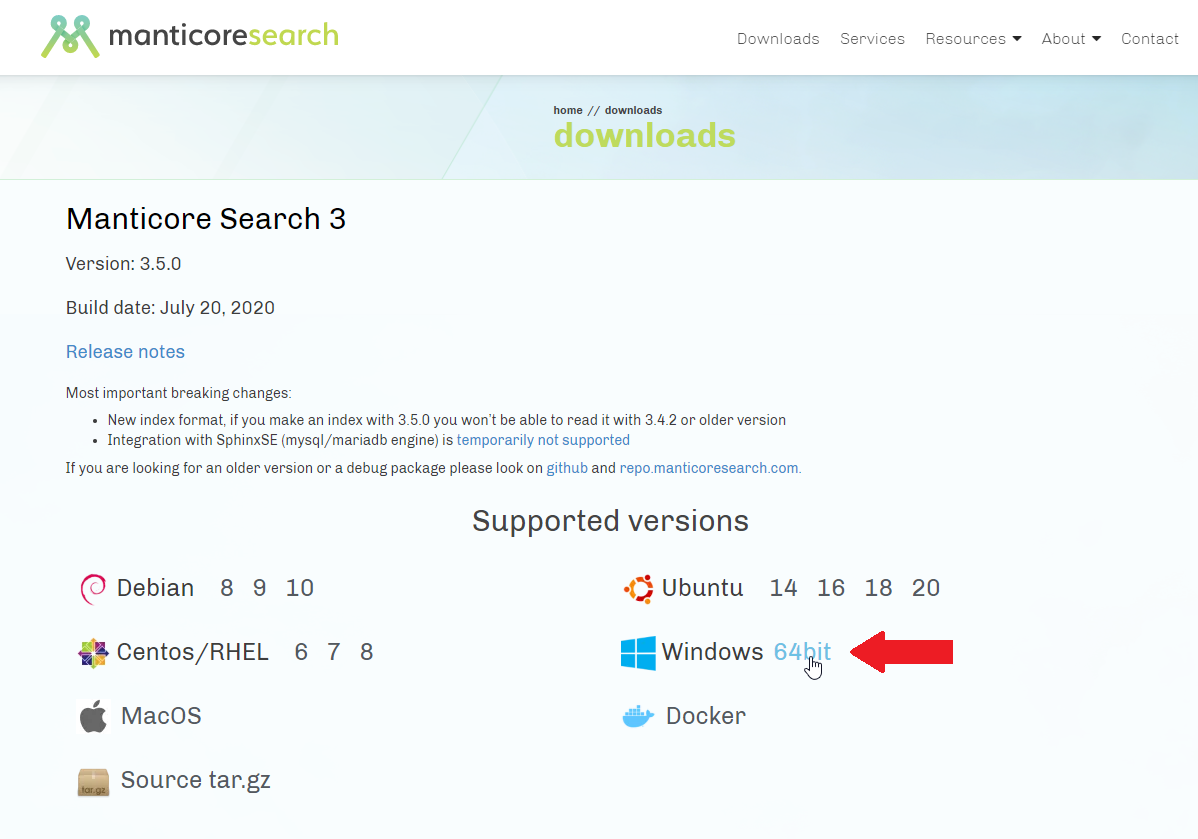

Download Manticore search for Windows 64-bit

Figure 1 – Download Manticore for Windows 64-bit

After clicking on the hyperlink, a message box appears asking if we want to start downloading or to copy the download URL.

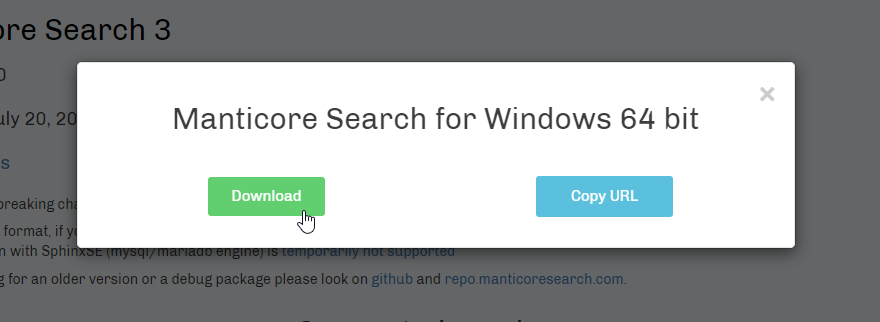

Download message box

Figure 2 – Download message box

After the download is complete, we created a directory named “Manticore” within the drive “E:”. Then, we extract the downloaded archive within this directory. The folder content should look like the following screenshot:

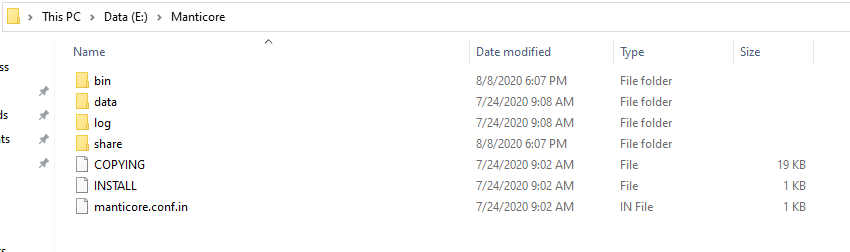

Manticore extracted files

Figure 3 – Manticore extracted files

Now, we should install the “searchd” application as a service (Check the previously published Sphinx search engine installation section). To do that, we should open the command prompt as administrator and run the following command:

E:\Manticore\bin\searchd –install –config E:\Manticore\manticore.conf.in –servicename Manticore

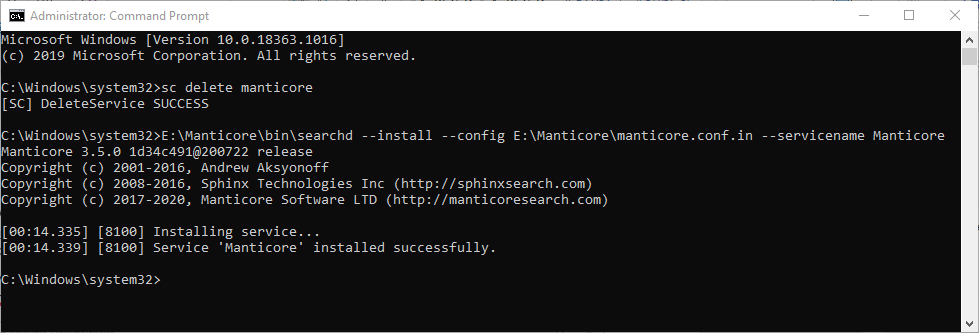

Installing searchd as a service

Figure 4 – Installing searchd as a service

After running this command, we can check if the service is installed within the Services window:

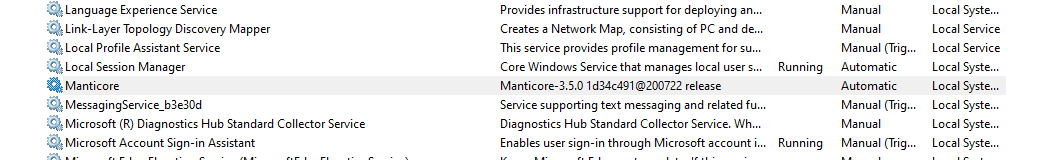

Service installed successfully

Figure 5 – Service installed successfully

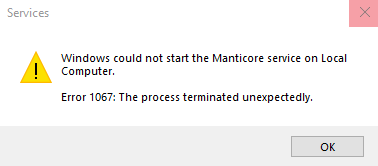

Now, if we try to start the installed Windows service, it fails, and the following error is shown:

Windows service error message

Figure 6 – Windows service error message

To solve this problem, we should open the configuration file (E:\Manticore\manticore.conf.in) and replace all @CONFDIR@ occurrences with the fully qualified path “E:/Manticore” (make sure to use slash instead of backslash). Also, we should remove the “data_dir” property since it is related to real-time indexes. Besides, we should add the current MySQL version using the “mysql_version_string” property to avoid conflicts, and we should add the “binlog_path” property. The file content should look like follows:

searchd
{
listen = 127.0.0.1:9312
listen = 127.0.0.1:9306:mysql
listen = 127.0.0.1:9308:http
log = E:/Manticore/log/searchd.log
query_log = E:/Manticore/log/query.log
pid_file = E:/Manticore/log/searchd.pid
query_log_format = sphinxql
binlog_path = E:/Manticore/data/binlog/
mysql_version_string = 8.0.20
}

Now, if we try to start the service again, it will start successfully.

Service started successfully

Figure 7 – Service started successfully

As mentioned in the first article in this series, MySQL client needs to be installed on your machine to be able to connect to the Sphinx console. The same condition applies to the Manticore search.

To connect to Manticore search using MySQL console, we should open the command prompt and go to the MySQL binaries directory (in this example the directory is “C:\Program Files\MySQL\MySQL Server 8.0\bin”) and use the following command:

mysql -P9306 -h127.0.0.1

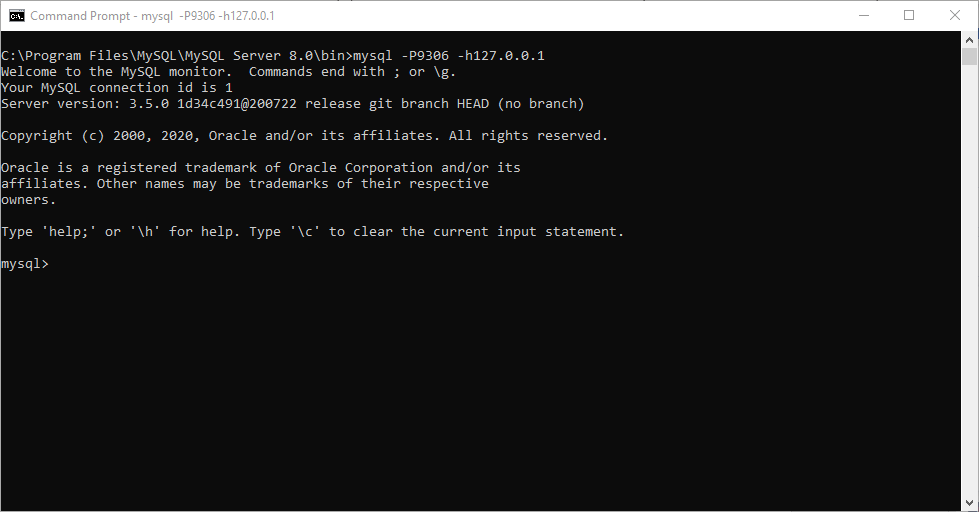

Connecting to Manticore using MySQL console

Figure 8 – Connecting to Manticore using MySQL console

As shown in the image above, the server version is the Manticore search version (3.5.0).

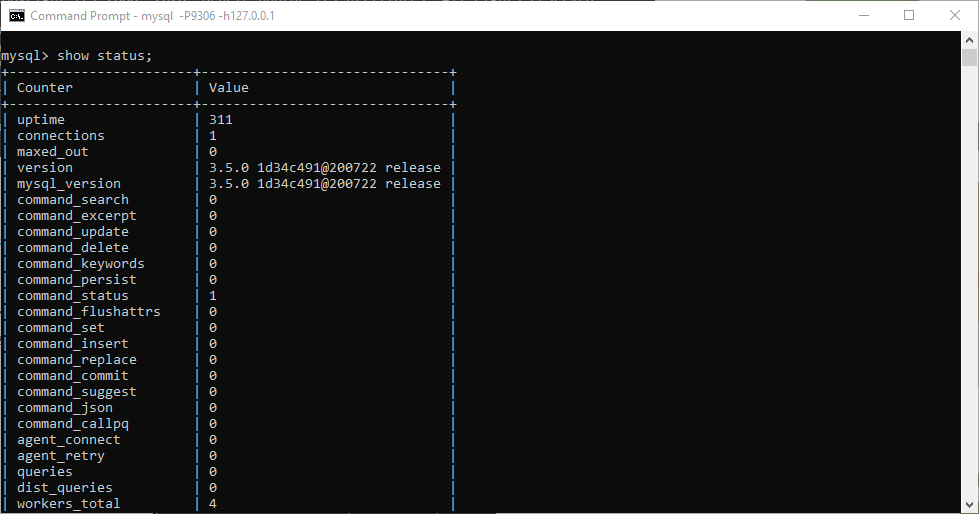

Now, let’s execute the “show status” command view the server (Manticore engine) status. The result is as follows:

Show status command result

Figure 9 – Show status command result

Building indexes

To build an index, we will use the same commands provided in the previous article Building full-text indexes using the Sphinx search engine. (The database used in this experiment is the AdcentureWorks2017 database).

As it is already explained in the previous article, we will not explain each code block we must add to the configuration file (Manticore .conf.in) and the data preparation steps needed. We will pretend that you already took the previous guide.

The index is built for the following query:

select ProductID as ‘id’, Name as ‘name’, ListPrice as ‘price’, ModifiedDate_TS as ‘date’ from Production.Product

The following code must be added to the configuration file:

After adding this code block (index definition, indexer configuration), we should open the command prompt utility and run the following command to start building full-text indexes (make sure to run command prompt as an administrator):

E:\Manticore\bin\indexer -–all -–config E:\Manticore\manticore.conf.in –-rotate –-print-queries

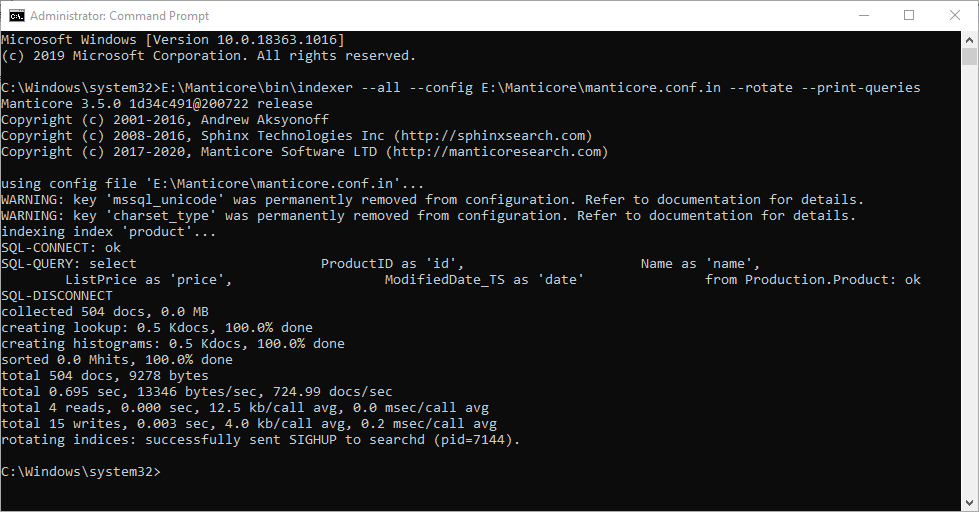

Building full-text indexes

Figure 10 – Building full-text indexes

If we take a look within the index directory (E:\Manticore\data\index\product), we will find that several files are created.

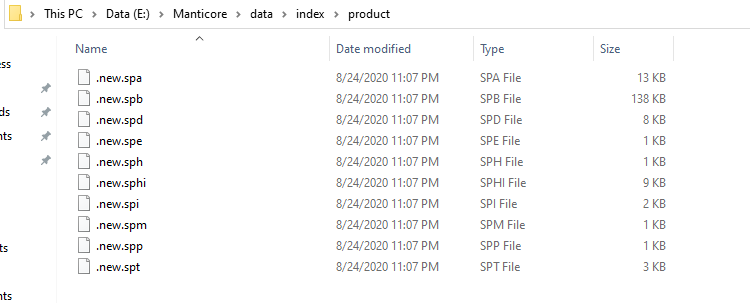

Created index files

Figure 11 – Created index files

Based on the official documentation, these files store the index information as follows:

Extension

Description

.spa

stores document attributes

.spb

stores blob attributes: strings, MVA, json

.spd

stores matching document ID lists for each word ID

.sph

stores index header information

.sphi

stores histograms of attribute values

.spi

stores word lists (word IDs and pointers to .spd file)

.spk

stores kill-lists

.spl

lock file

.spm

stores a bitmap of killed documents

.spp

stores hit (aka posting, aka word occurrence) lists for each word ID

.spt

stores additional data structures to speed up lookups by document ids

.spe

stores skip-lists to speed up doc-list filtering

.spds

stores document texts

.tmp*

temporary files during index_settings_and_status

.new.sp*

during indexing new version of the index is written by default in the same folder

.old.sp*

after rotation previous version files are saved with .old extension

To verify that the index is built successfully, we will open the MySQL console again, and execute the “show tables;” command. It should show the product index.

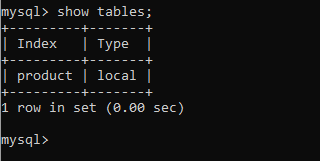

Show tables command result

Figure 12 – Show tables command result

Also, if we execute a select query over the created index, the data should be visualized as the following:

Selecting data from index result

Figure 13 – Selecting data from index result

Connecting to Manticore search using SQL Server linked server object

As mentioned previously, in building full-text indexes article, to establish a connection with the Manticore search from the SQL Server management studio, we should first install the MySQL ODBC connector from the following link.

To create a linked server, we can use the following query:

After creating the linked server, we can read data from the Manticore indexes by executing SphinxQL statement using OPENQUERY() option:

The result should look like the following:

Reading data using a linked server object

Figure 14 – Reading data from Manticore using a linked server object

Conclusion

In this article, we talked briefly about the Manticore search and how it differs from the Sphinx search engine. We showed how to install this engine and how to build full-text indexes from SQL Server databases. Finally, we explained how we could connect to the Manticore engine from the SQL Server management studio via a linked server object.

At the end of this series, we should be familiar with Sphinx and Manticore search engines, and you should be able to decide which one of these engines you have to use. If you are a new user, it is preferable to go with Manticore since more resources are found online, and it is easier to get supported.
