Sifiso W. Ndlovu

Top 5 Deprecated Features in Reporting Services 2016

February 17, 2017 by

It’s not often that I write negative articles surrounding SQL Server’s latest release but ever since we upgraded one of our BI boxes to run SQL Server Reporting Services 2016 (SSRS 2016), I have picked up on some frustrations from my team when using the upgraded Report Manager portal due to the unavailability of features that used to exist in versions prior to SSRS 2016. I have since realized that in spite of the many exciting features and improvements introduced in SSRS 2016, there is a downside to this latest version of reporting services that is likely to leave many administrators frustrated.

Deprecated Feature #1: The Disappearing Sort

  1. Security property

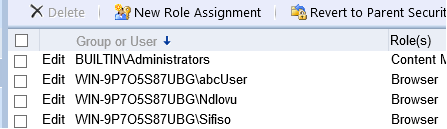

    In the organisation that I work for, SSRS is usually accessed by users from multiple departments i.e. Finance, Sales, HR, Customer Services, and IT. Consequently, there is usually a long list of domain users that are granted access to SSRS reports. Thus, one of the useful features in SSRS was the ability to conduct an alphabetical sort of users that have been granted access to reports. The simplest way to do this, has always been to just click on the Group or User field. Figure 1 shows an SSRS 2014 instance with a sorted list of my fictitious users who have been granted access to one of my reports.


    Figure 1

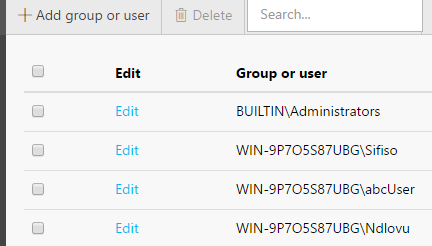

    However, following the upgrade to SSRS 2016, I now have an unsorted list of groups and users (i.e. user WIN-9P7O5S87UBG\Sifiso shown in Figure 2, is now ahead of user WIN-9P7O5S87UBG\abcUser). Instead of users being sorted alphabetically, it seems like SSRS 2016 is now sorting users based on the date they were granted access to the report. Furthermore, the ability to sort users by clicking on the Group or User field, has been removed.


    Figure 2

  2. Unsorted Search results

    As indicated earlier, our SSRS instance contains hundreds of items that are accessed by users from various departments. Thus, part of administering such a report server instance involves doing a quick search to get to some items. Figures 3 and 4 shows the two search result pages against an SSRS 2014 and SSRS 2016, respectively.

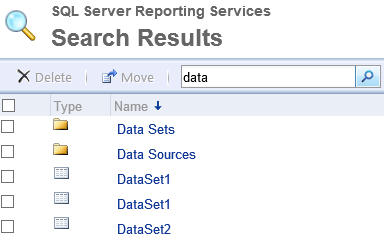

    Figure 3

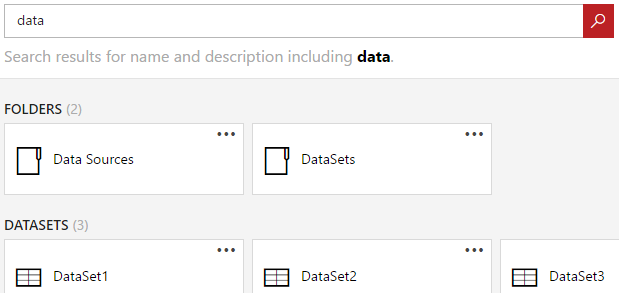

    Figure 4

    What it basically comes down to, is that our favourite search results page has also been disadvantaged by the upgrade as we are no longer unable to:

    • Sort search results
    • Bulk-Delete several search results
    • Bulk-Move several search results
    • Change search results view from list to tile, (and vice versa)

Deprecated Feature #2: Inability to Rename Items During Upload

Ideally if you have a good naming convention in place for all your SSRS development, then this deprecated feature shouldn’t really be an issue for you but the fact is most SSRS developments do not follow good naming conventions, so that’s why the removal of this feature can be very frustrating for most report server administrators. Basically, versions prior to SSRS 2016 used to give you an ability to rename a file during the upload, particularly when you are uploading a file whose name already exists in the report server.

For instance, in Figure 5, I am attempting to upload an SSRS Shared Dataset whose name already exists in the report server. As expected, I get a warning message that informs me that the item name is already in use. To get around this, I renamed the Shared Dataset from DataSet1 to Dataset2, proceeded to click OK button and the upload was successful.


Figure 5

This ability to rename an item during an upload in SSRS 2016 has unfortunately been discontinued. As shown in Figure 6, you are now only allowed to either overwrite an existing item or cancel the upload operation.


Figure 6

Deprecated Feature #3: The Disappearing Tree Hierarchy

One of the tasks of a report server administrator typically involves deploying and configuring reports. You often have to configure report data sources and shared datasets as you have to change connection strings to point to production. One benefit of configuring data source and datasets – especially when a report has multiple of these – was that when you click browse to look for a data source or dataset, you would get a tree structure that is easy to navigate.

For instance, the report shown in Figure 7 has multiple shared datasets, one of which (DataSet1) has already been configured, when I click on the Browse button to configure DataSet2, the dataset I last selected is set as the default for Dataset2. Now, I can either select the default dataset or navigate to something else. The point is, these default dataset paths usually saves considerable amount of time from having to click the root report manager folder every time you need to get to datasets stored within various sub-folders.


Figure 7


Figure 8

Well, not only has default dataset paths been removed in SSRS 2016, the tree hierarchy structure that made identifying datasets so easy has also been removed. As it can be seen in Figure 9, when I try to configure DataSet2, I am not redirected to the path of the last dataset that I selected (in this case DataSet1), instead I am redirected to a dataset root folder shown in Figure 10. If the dataset that I am looking for is 3 levels down, then I will have to click on sub-folders until I get to the right folder!


Figure 9


Figure 10

Deprecated Feature #4: Reduced options in the Context Menu

As an SSRS administrator, the context menu is one of the convenient ways to accessing some SSRS item properties. For instance, if you need to add a user to a report, you would open the context menu associated with a given report and then click Security as shown in Figure 11. This would take you directly to the Security property of the report.


Figure 11

Well, if you would attempt to replicate these actions in SSRS 2016 you would notice that the Security option has been removed from a report’s context menu.


Figure 12

Other options that have been removed from a report’s context menu include the ability to Create Linked Report. The Security option has been removed across all SSRS item types including data sources and datasets. Furthermore, the data source item type has also had View Dependent Items option removed from the context menu – as shown in Figures 13 and 14.


Figure 13


Figure 14

Deprecated Feature #5: The Disabled Hyperlink

Have you ever attempted to run a report and received an error message relating to some invalid dataset or connection string? Well, one of the first things I like to do in that situation is to click on the report’s hyperlink, as shown in Figure 15. Such a hyperlink click (in versions of SSRS prior to SSRS 2016), would redirect you to a manage page in which you could navigate accordingly to fix the invalid report dataset.


Figure 15

Unfortunately, this ability to click on the report name so to be redirected into the manage page has been removed in SSRS 2016, as shown in Figure 16.


Figure 16

Instead of the previously easier and convenient way of getting to the manage report page, you are restricted to doing the following:

  1. Click on the folder containing a given report
  2. Identify the report that you want to fix
  3. Right click on it to get to the context menu, and finally
  4. Click, Manage!

It’s ridiculous!

See more

For SSRS documentation, consider ApexSQL Doc, a tool that documents reports (*.rdl), shared datasets (*.rsd), shared data sources (*.rds) and projects (*.rptproj) from the file system and web services (native and SharePoint) in different output formats.

References


Sifiso W. Ndlovu

Sifiso W. Ndlovu

Sifiso is a Johannesburg based certified professional within a wide range of Microsoft Technology Competencies such SQL Server and Visual Studio Application Lifecycle Management.

He is the member of the Johannesburg SQL User Group and also hold a Master’s Degree in MCom IT Management from the University of Johannesburg.

He currently works for Clientele Life as an Assistant Manager in Business Software Solutions.

View all posts by Sifiso W. Ndlovu
Sifiso W. Ndlovu
Business Intelligence, SQL Server 2016

About Sifiso W. Ndlovu

Sifiso is a Johannesburg based certified professional within a wide range of Microsoft Technology Competencies such SQL Server and Visual Studio Application Lifecycle Management. He is the member of the Johannesburg SQL User Group and also hold a Master’s Degree in MCom IT Management from the University of Johannesburg. He currently works for Clientele Life as an Assistant Manager in Business Software Solutions. View all posts by Sifiso W. Ndlovu

3,867 Views
  • Koen Verbeeck

    Hi Sifiso,

    are you sure these are all “discontinued” and “deprecated” features? Those two words have a very specific connotation in Microsoft: it means they were deliberately dropped from the product.
    I think that in this case, you are describing functionality that hasn’t yet been implemented in the new Portal. For example, List View wasn’t available in SSRS 2016 RTM, but they added this in a later update (with better context menus as well).

    Did you log any Connect items for the missing functionality? If so, we can vote on them to bring them back asap.

    Regards,
    Koen

    • Sifiso Ndlovu

      Hi Koen,

      Thanks for the response, I’m a fan!

      You are correct. I actually struggled to come up with the title for this article. The article was based off an RTM version – I supposed, I should have mentioned that in the article.

    • Brian Lockwood

      Thanks for the comment Koen. Pls keep ’em coming!

  • Dan English

    The list seems to be pretty valid and not saying these are officially deprecated items, but maybe some items that were just overlooked and not implemented yet during the makeover. With regards to Feature #1 Part 2, that is not valid because with SP1 you can change the search results to List and do everything mentioned here. The one item that I miss, and maybe it was something that we could just do with SharePoint Integrated, is the ability to easily change the default parameters when they are referencing a dataset. Now I just get a blank drop down list with no values in it in Report Manager, kind of frustrating.

    • Sifiso Ndlovu

      Hi Dan,

      I appreciate your feedback.

      You are correct, Feature #1 Part 2 has since been resolved in SQL Server 2016 SP1. My mistake was not mentioning that the article was based off an RTM version of SSRS 2016.

    • Brian Lockwood

      Dan – thanks much for the excellent comment

  • Angela Borini

    Super irritating that i there is now no alphabetical list to the Reporting Services, does anyone have a solution for this?
