SQL Server Query Tuning: Use the UNION ALL operator instead of to UNION operator

Getting started with SQL Server Query Tuning

April 21, 2020 by

This article will cover some essential techniques for SQL query tuning. Query tuning is a very wide topic to talk about, but some essential techniques never change in order to tune queries in SQL Server. Particularly, it is a difficult issue for those who are a newbie to SQL query tuning or who are thinking about starting it. So, this article will be a good starting point for them. Also, other readers can refresh their knowledge with this article. In the next parts of this article, we will mention these techniques that help to tune queries.

Avoid using the asterisk “*” sign in SELECT statements

We should use the asterisk (star) sign solely when we need to return all columns of the table. However, this usage type becomes a bad habit by the programmers, and they start to type their queries with the “SELECT * “ statement. At various times in my database administrator career, I have experienced that the “SELECT * “ statement used to retrieve only one column of the multicolumn tables. Worse than this experience, the developer is not aware of this problem. This usage approach causes more network and I/O activity, so it affects the query performance negatively because of the more resource consumption. Now, we will make a pretty simple test to find out the performance difference between the “SELECT *” statement against “SELECT column_name1, column_name2, column_nameN” statement. Assume that, on a web application, we only need to show two columns, but we used the asterisk sign in our query.

SQL Server Management Studio (SSMS) offers a very helpful tool that helps to analyze and compare the executed queries performance metrics. This tool name is Client Statistics, and we will activate this option before executing the following two queries.

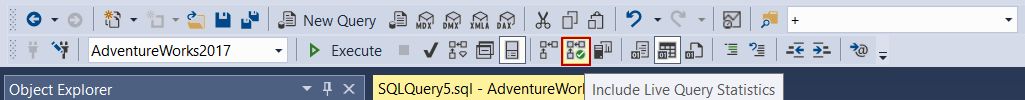

Enable Client Statistics in SQL Server Management Studio

Now we will execute the sample queries respectively and open the Client Statistics tab.

SQL Server Query Tuning: Don’t use asterisks (*) sign in your queries

As we can see obviously, there is a dramatic difference between the received network measurements of these two select statements in the Network Statistics section. At the same time, the Time Statistics measurement comparison result does not change for the “SELECT *” statement. It shows poor performance than the “SELECT column_name1, column_name2, column_nameN” statement. In light of this information, we can come to this outcome “As possible as we should not use the asterisk signs in the SELECT statements.

Don’t use scalar-valued functions in the WHERE clause

A scalar-valued function takes some parameters and returns a single value after a certain calculation. The main reason for why the scalar-valued functions affect performance negatively, the indexes cannot be used on this usage approach. When we analyze the following query execution plan, we will see an index scan operator because of the SUBSTRING function usage in the WHERE clause.

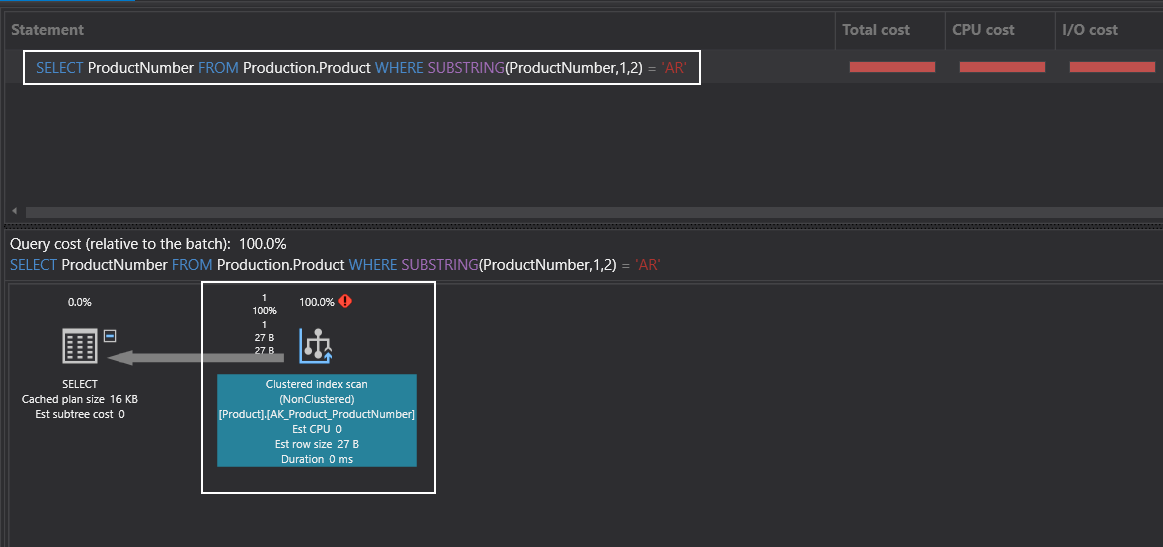

SQL Server Query Tuning: Don’t use scalar-valued functions in the WHERE clause

The index scan operator reads all index pages in order to find the proper records. However, this operator consumes more I/O and takes more time. As possible, we should avoid the index scan operator when we see it in our execution plans.

On the other hand, particularly for this query, we can improve their performance with a little touch. Now we will change this query as below so the query optimizer will decide to use another operator.

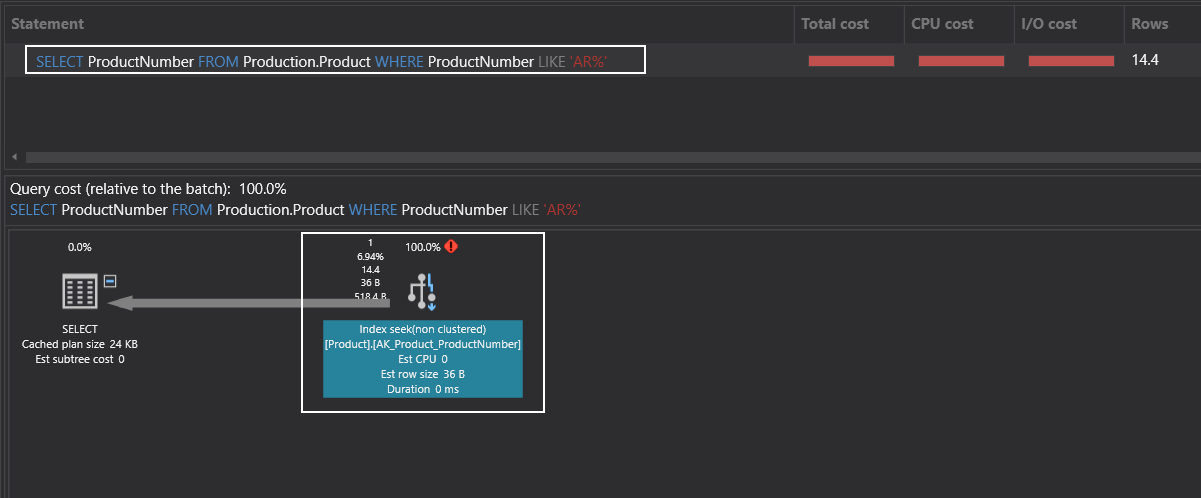

Index seek example

The index seeks operator only reads the qualified rows because this operator effectively uses the indexes to retrieve the selective rows. At the same time, it shows great performance when against the index scan operator.

Tip: Scalar-valued functions are executed for each row of the resultset, so we should consider the rows number of the resultset when we use them. They can damage the query performance when trying to use for the queries which will return a huge number of rows. However, Microsoft has broken this traditional chain with SQL Server 2019 and made some performance improvements in the query optimizer for the scalar-valued functions, and it has been generating more accurate execution plans if any query contains the scalar-valued function. You can see the following article for more details about this improvement:

Improvements of Scalar User-defined function performance in SQL Server 2019

Use the covering indexes to improve the query performance

Covering indexes contains all referenced columns of the query, so they improve the selectivity of the index, and if any query uses this index, it accesses the data more efficiently. However, before creating any covered index, we need to figure out cost-benefit analyses because any new index directly affects the performance of the insert statement. Now we will analyze the execution plan of the following query.

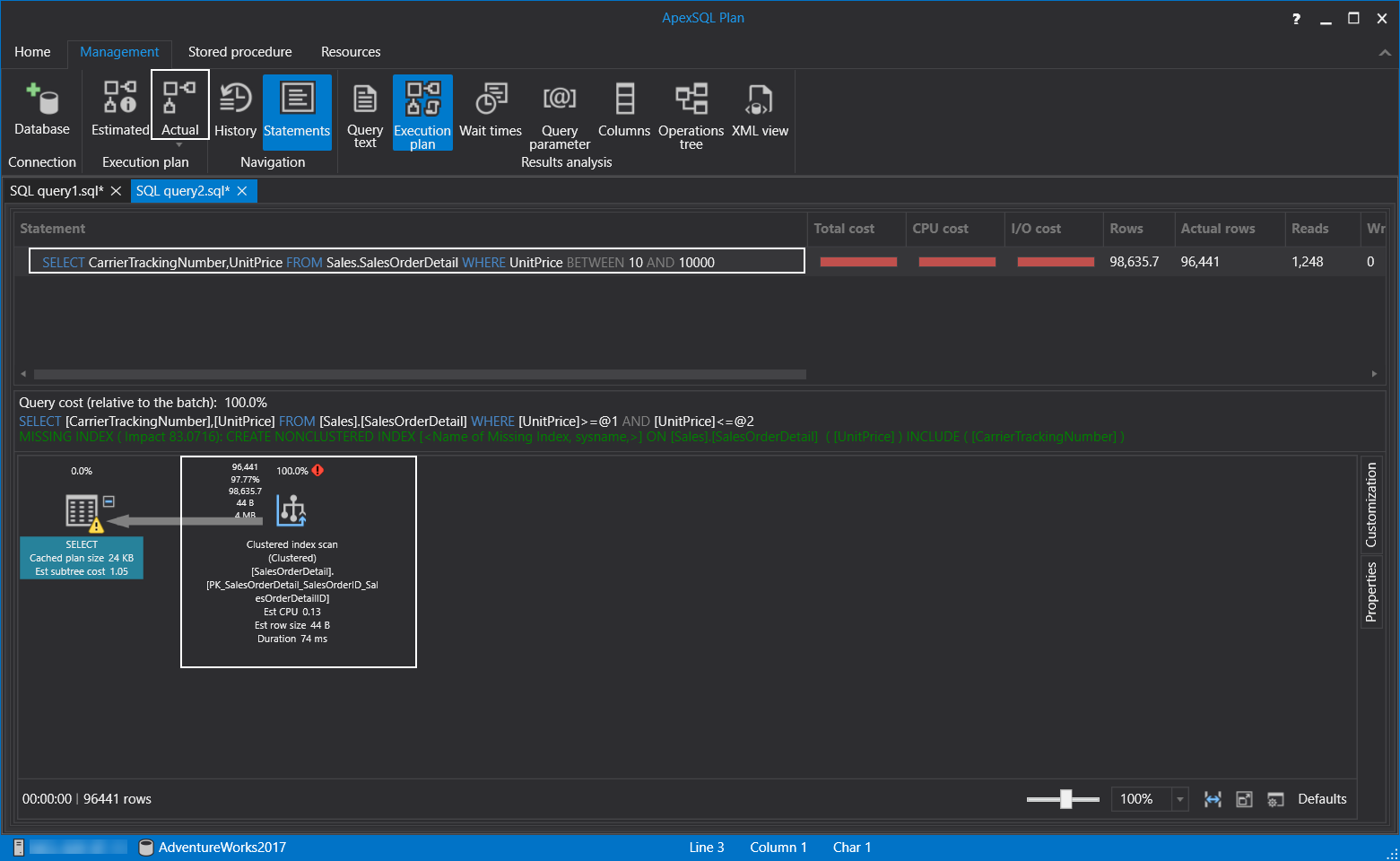

SQL Server Query Tuning: Use the covering indexes

As we learned, the index scan operation is not shown good performance during the execution of the query. To overcome this problem, we will create the following index. The main characteristic of this index is that it covers all the columns of the query through the index key or included columns.

After the creation of the index, we will re-analyze the actual execution plan of the same query.

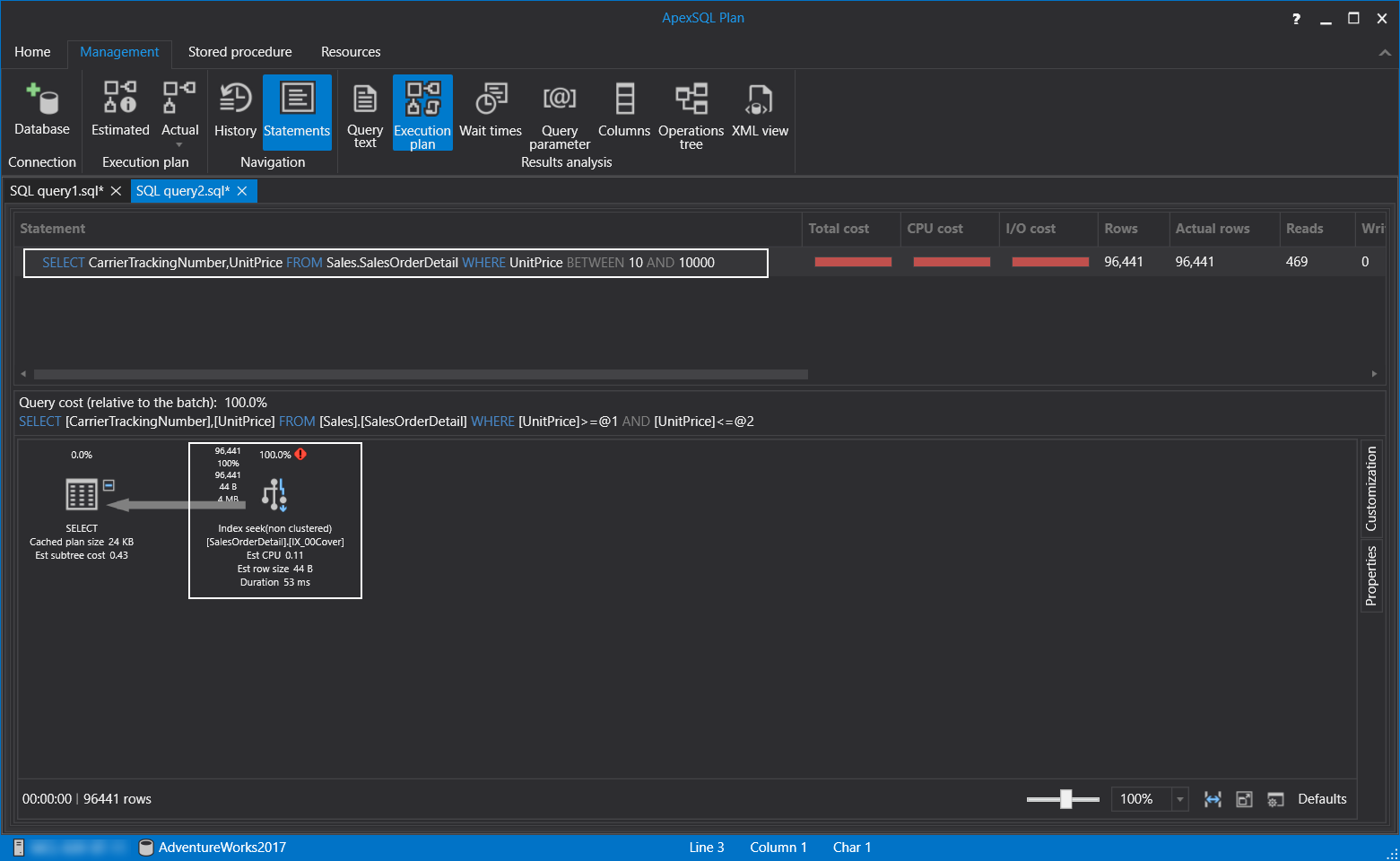

Covering index example

The execution plan of the query has started to use an index seek operator, and this operator shows better performance than the index scan operator.

Use the UNION ALL operator instead of the UNION operator

UNION ALL and UNION operators are used to combine two or more than two result sets of the select statements. However, the main difference between these two operators is the UNION operator eliminates the duplicate rows from the result set. In terms of the query tuning, UNION ALL operator perform better performance than UNION operator. As a result, if we don’t consider the duplicate rows in the result set, we should use UNION ALL operator in our select statements. When we compare execution plans of the following queries, we will see a noticeable difference between these two execution plans. At first, we will compare the execution plans.

SQL Server Query Tuning: Use the UNION ALL operator instead of to UNION operator

When we analyze the comparison of the execution plans, we can see that the Sort operator adds extra cost to the select statement, which is using the UNION operator. As a final word about these two operators, if we don’t consider the duplicate records, we should use UNION ALL operator to combine the result sets.

Use Actual Execution Plans instead of Estimated Execution Plans

The execution plan offers us to the visual presentation of the query processing steps. When we analyze any execution plan, we can clearly understand the road map of the query, and it is also a significant beginning point to tune a query. The estimated and actual execution plans are the two types of execution plans that can be used by us to analyze the queries. During the creation of the estimated execution plan, the query does not execute but generated by the query optimizer. Despite that, it does not contain any runtime metrics and warnings.

On the other hand, the actual execution plan contains more reliable information and measurements about the query. Actual Execution plans provide an advantage to tune the query performance.

Another approach can be combo usage for the execution plans for the queries which have longer execution times. At first, we can check the estimated execution plan and then re-analyze the actual execution plan.

Tip: If a query includes any temp table, the estimated execution plan can not be generated. It will be given an error when we try to generate it. The following query will return an error when trying to generate an estimated execution plan.

SQL Server Query Tuning: Use the actual execution plans


In this article, we learned essential techniques to tune SQL queries. Performance tuning is a very complicated and struggling task to accomplish, but we can learn this concept from easy to difficult, and this article can be a good beginning point to start. Also, the following topics are vital to improving our query tuning skills; therefore, you can look at the following articles for the next steps of your learnings.
