Introduction

This article is for people who need to replicate the SQL Server Databases. SQL Server includes several types of replications to synchronize the databases across different SQL Servers.

Sometimes we need to replicate the data to have a Backup. Sometimes we need to synchronize Servers that are located in different cities or countries.

In this article, we will introduce you to the SQL Server Replication Theory and then we will show a step-by-step tutorial to replicate a Table using the Merge replication.

Types of Replications

In SQL Server, the main types of replication are SQL:

  • Snapshot
  • Merge
  • Transactional

You also have the Heterogeneous Replication with Oracle, which is out of the scope of this article.

Roles in replication

There are three roles in a replication:

  • The Publisher is the SQL Server, which publishes the information to replicate (usually tables).
  • The Distributor is the SQL Server that distributes de information in each Subscriber. The distributor can be installed at the Publisher, in the Subscriber or in a separate SQL Server.
  • The Subscriber is the SQL Server that receives the information Published.

Snapshot Replication

The snapshots replicates the complete table or tables selected in the Snapshot replication process. When the snapshot replication is applied, the entire snapshot is replicated.

Transactional Replication

In the transactional method, one of the SQL Servers is the publisher, which publishes the tables or objects to replicate, and the other is the subscriber (or the subscribers if multiple SQL Servers are being replicated).

Merge Replication

For the first time, a snapshot is used to replicate the information and after that, all the data and schema is replicated every time is changed using triggers.

Prerequisites

  1. Two SQL Server or at least two SQL Server instances.
  2. Make sure that the SQL Server Agent Account is running under a common account for both Servers.
  3. A table to be replicated.

Getting started

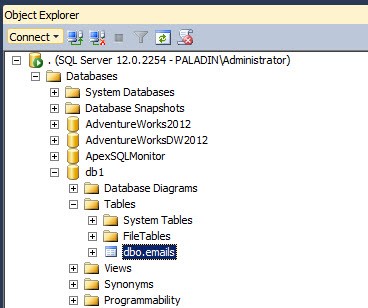

  1. In the SQL Server Management Studio (SSMS), open the node of the SQL Server with the table to be published. In this example, we are going to publish a table named emails installed in the DB1 database.

    Publish Table
    Figure 1

  2. In the Replication Node right click on the Local Publication and select New Publication.

    Replication Node
    Figure 2

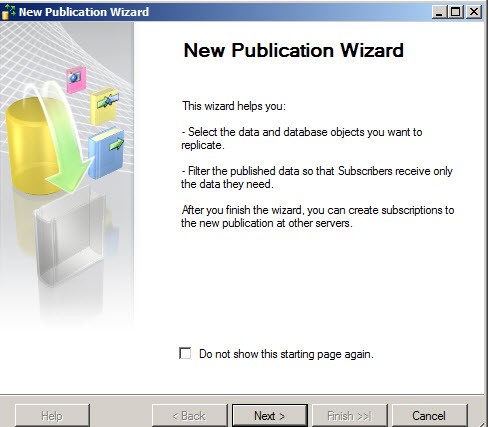

  3. In the new publication Window, press Next.

    New Publication
    Figure 3

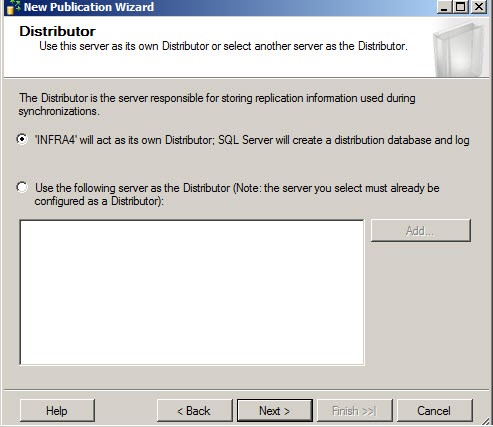

  4. Select the Server that will be used as a distributor. In this example, the Publisher and the Distributor will be the same Server,

    Select Server
    Figure 4

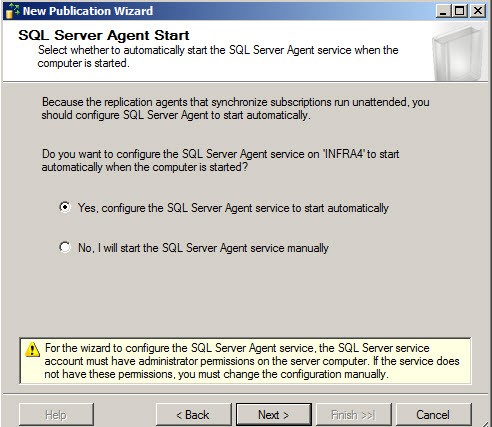

  5. You can optionally configure if you want the Agent to start automatically. This is recommended if you constantly require synchronization between SQL Servers.

    Configure Start
    Figure 5

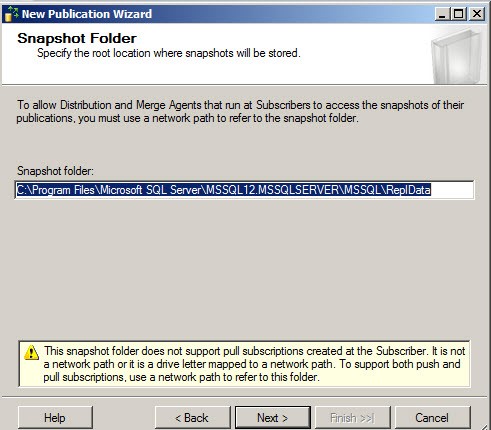

  6. All the replication types require a Snapshot. The Snapshot Folder allows you to specify the Path where the folder will be published.

    Snapshot Folder
    Figure 6

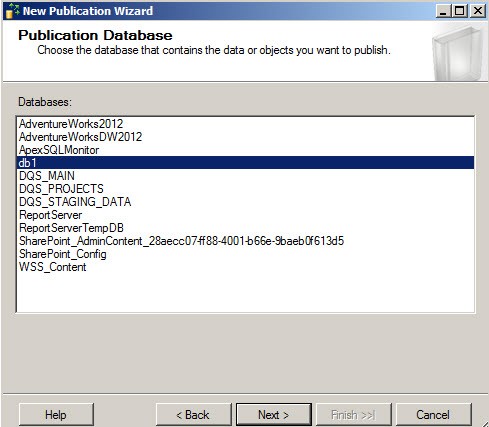

  7. Select the Database where you have the information to be published.

    Database Selection
    Figure 7

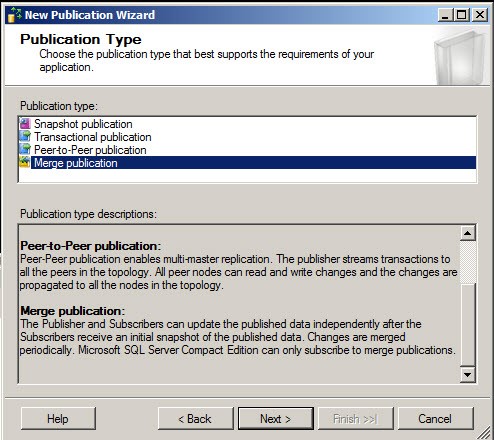

  8. Select the Replication type

    Replication Type
    Figure 8

  9. Specify the SQL Server version of the Subscriber.

    Server Version
    Figure 8a

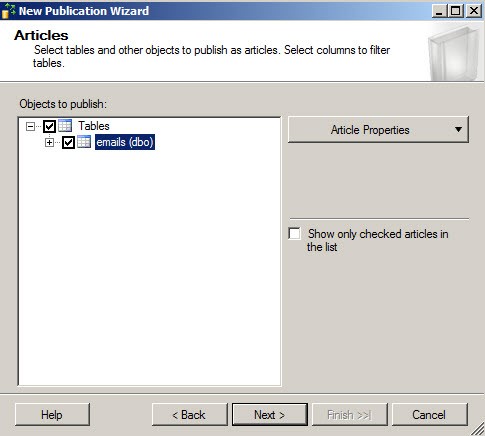

  10. Select the tables or tables to Replicate.

    Tables To Replicate
    Figure 9

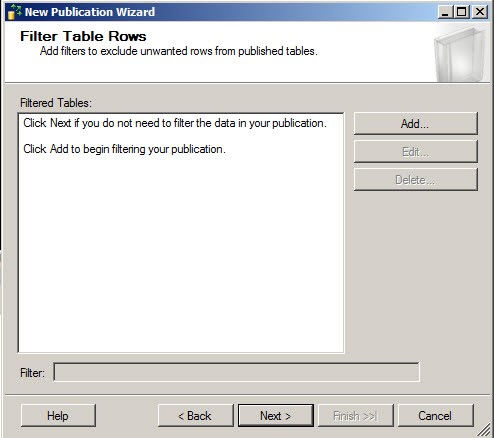

  11. You can optionally add filters to Rows or Columns. This is common when you have some internal information that you do not want to replicate. Press Add if you want to add filters.

    Add Filters
    Figure 10

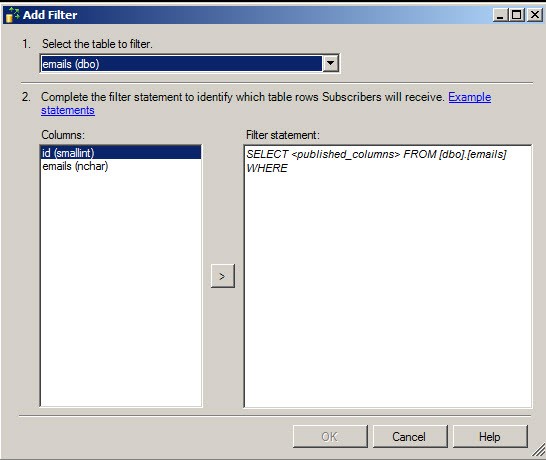

  12. In the Filter statement you can configure the T-SQL Sentences to filter the columns or to restrict the rows usually with a where clause.

    FilterStatement
    Figure 11

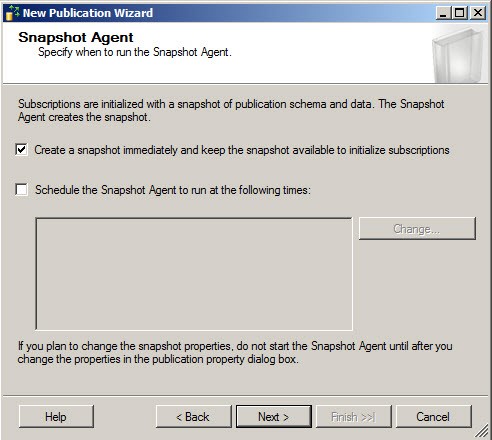

  13. You can create the snapshot immediately or Schedule at a specific time.

    Specific snapshot
    Figure 12

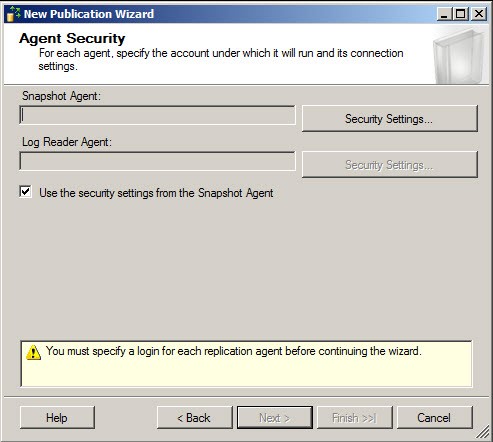

  14. With the Security Settings button, you will specify the account under which the connection will run.

    Security Settings
    Figure 13

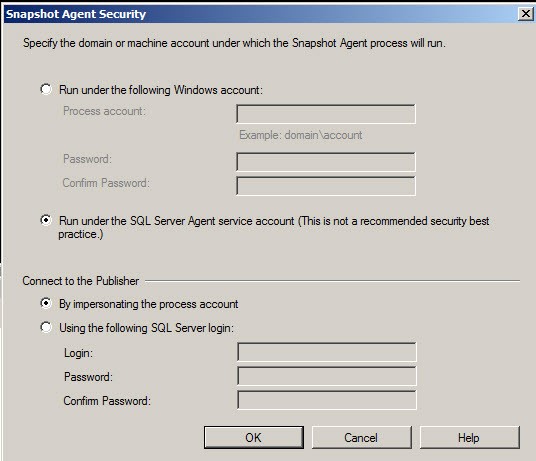

  15. You can run under a specific account, impersonate the process Account, use a SQL Server Login.

    Impersonate Account
    Figure 14

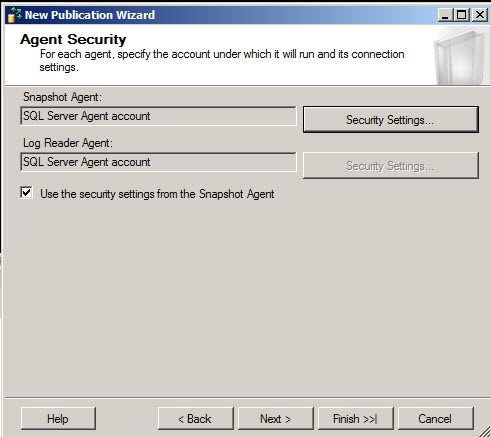

  16. Once selected the security settings press Next.

    Agent Security
    Figure 15

  17. Select a publication type. In this example, Merge Replication.

    Merge Publication

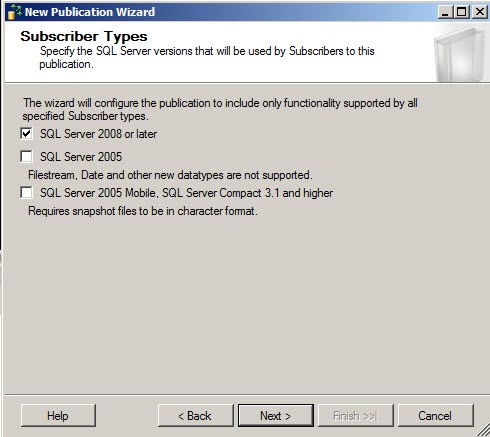

  18. Select the version of the SQL Server Subscriber.

    Subscriber Types

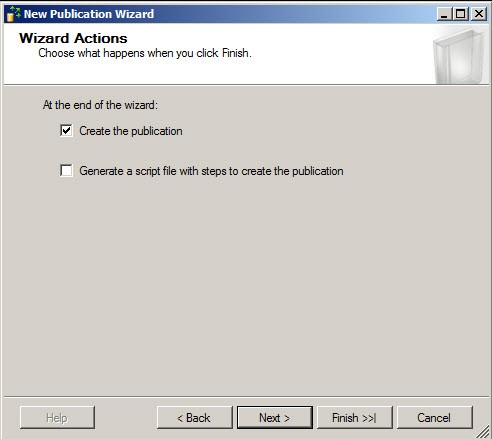

  19. Create the publication and press Next.

    Create The Publication
    Figure 16

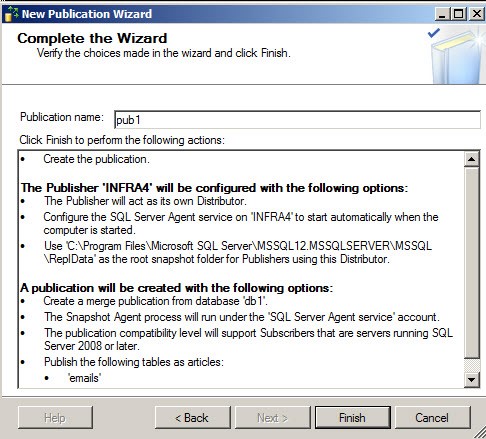

  20. Specify a name for the Publication and press Finish.

    Name Specification
    Figure 17

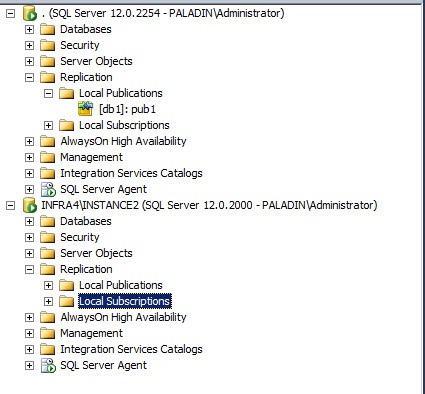

  21. If you open the SQL Server, you will be able to see a publication named db1: pub1.

    db1 pub1
    Figure 18

  22. In the other server used as a Subscribers, go to Replication>Local Subscription and select New Subscriptions.

    Subscribtions
    Figure 19

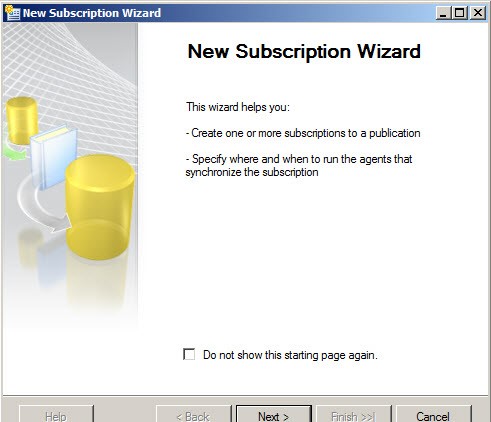

  23. In the New Subscription Wizard, press Next.

    New Subscribtion Wizard
    Figure 20

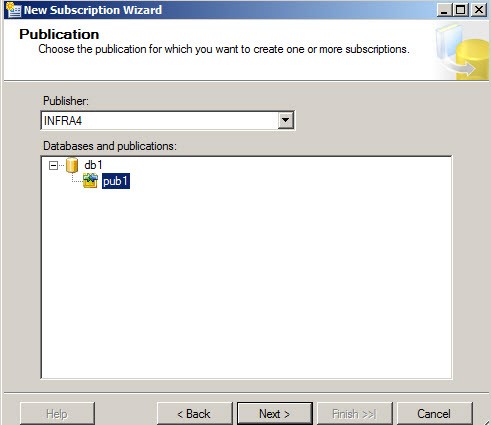

  24. Select the Publisher Server where you published the article.

    Publisher Server
    Figure 21

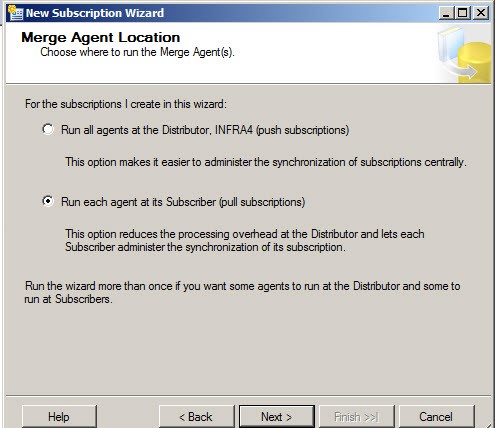

  25. You can select where you want the Merge Agent to run. It can run at the Distributor or at each subscriber.

    Merge Agent Locationr
    Figure 22

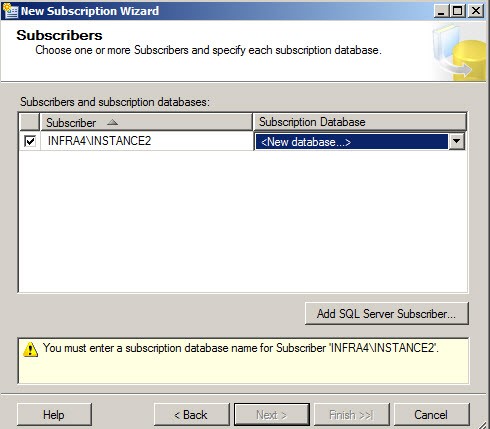

  26. At the subscriber database, you can create a new database to be used as the database subscriber to receive the data replicated.

    Replicated Data
    Figure 23

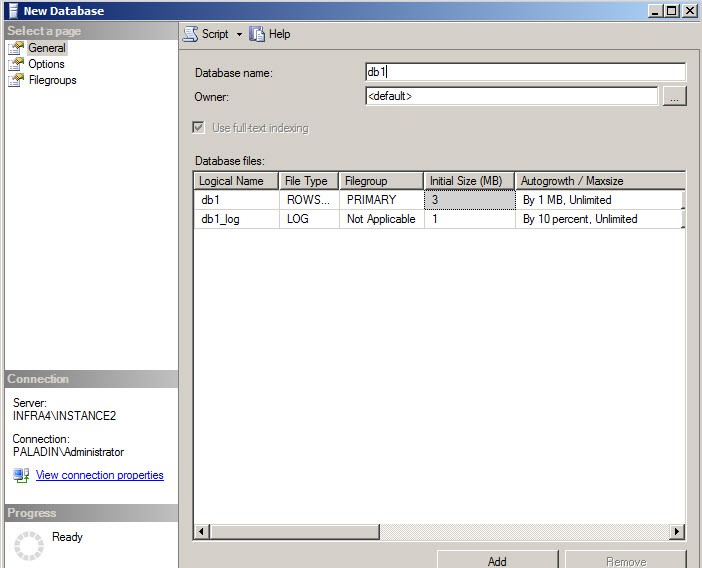

  27. Create a Database with the same name that the database used as the publisher.

    Same Database
    Figure 24

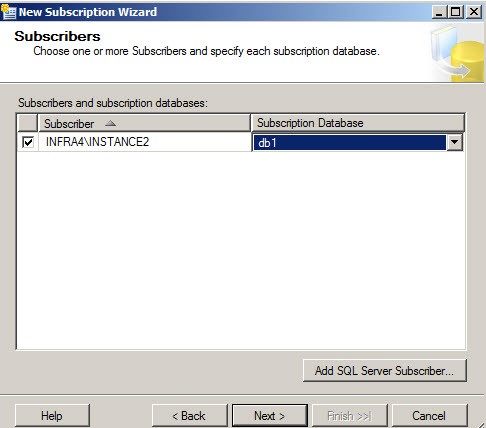

  28. You can choose the subscribers and the subscription database. Press Next.

    Choose Subscribers
    Figure 25

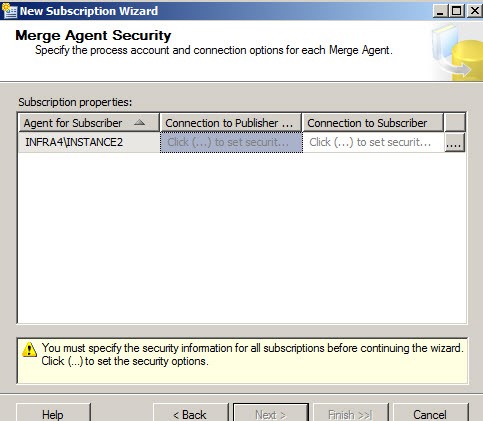

  29. Click in the ellipsis button to specify the security accounts.

    Elipsis Button
    Figure 26

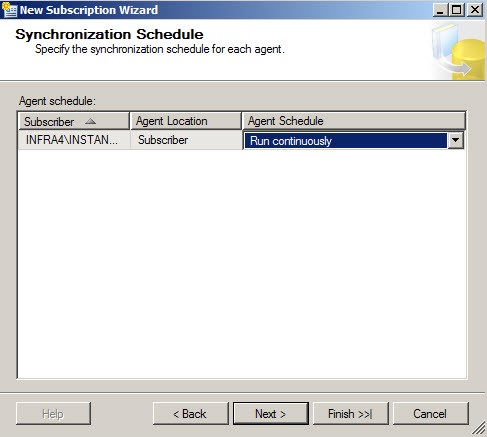

  30. You can specify the Schedule for the Synchronization.

    Spec Schedule
    Figure 27

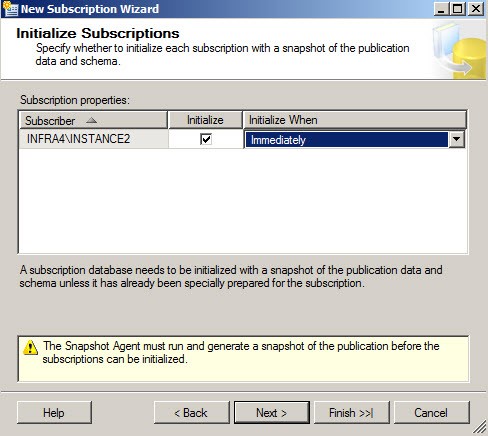

  31. You have to Schedule when you want to initialize the replication with the snapshot publication.

    Initialize Subscribtions
    Figure 28

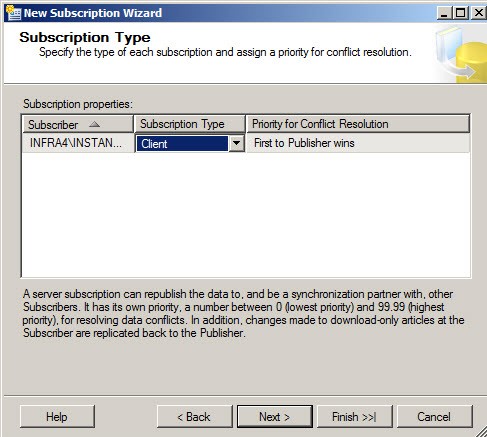

  32. You also need to specify the type of subscription

    Spec Subscription Type
    Figure 29

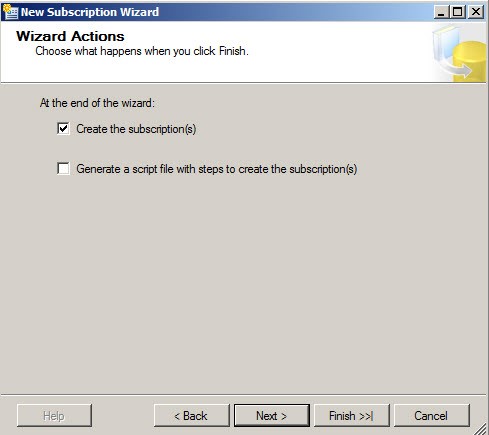

  33. Finally, create the subscription.

    Final Subscription Type
    Figure 30

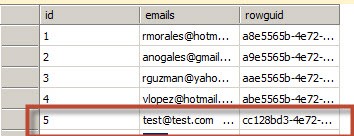

  34. If everything is OK, add a new row to the table replicated at the publisher.

    New Row
    Figure 31

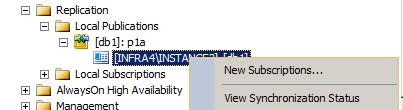

  35. At the publisher, go to Replication>Local Publication and select the article. Right click and select View Synchronization Status.

    Sync Status
    Figure 32

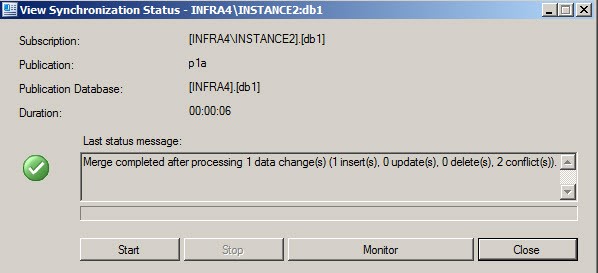

  36. If you want to merge inmediately, press the start button. You will check that 1 insert is detected

    merge Inmediately
    Figure 33

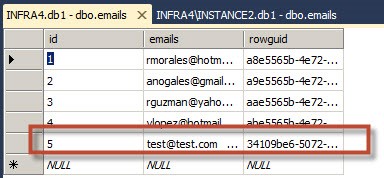

  37. If everything is OK, you will be able to check the replication at the subscriber. Your replication is now ready !

    Replication Ready
    Figure 34

Conclusion

As you can see, replicating a database is a straightforward process. You can replicate any database that you want anytime. In this article, we teach the basis of the replication, the replication types, roles and finally, we show how to create a Merge Replication.
