Simulating a Multi Subnet cluster for setting up SQL Server Always On Availability Groups – lab setup

March 14, 2019 by

In this article, we are going to see how to create a multi subnet cluster spanning across multiple subnets for lab purposes. Creating such an environment should help creating Availability groups simulating a far replica residing in a different Data Center (Subnet) acting as a disaster recovery site in your lab for learning/experimenting real world scenarios.

Let’s get into action, below is what we are going to setup for our lab purposes to simulate a multi subnet cluster environment and create an Always On Availability group.

  • Two nodes (Replicas) residing in my production/primary Data center (Subnet 192.168.1.x) – Let’s say these two replicas are used for High availability, assuming we have low latency, since they are residing in the same data center (Probably in the same rack), I will set them up with Synchronous Mode with Automatic Failover
  • Third node (Replica) sitting in my disaster recovery data center which is geographically dispersed (Subnet 192.168.2.x) – Assuming it’s connected over WAN and is used just for DR purposes, I would set this replica in Asynchronous Mode with Manual Failover

Again, It’s not mandatory to always setup near replicas with Synch/Auto mode and far replica with Asynchronous/Manual mode. That’s just an example what I would use in my lab environment when creating Always On availability groups to begin with.

So, what exactly do we need to be able to setup multiple subnets and routing in a lab environment using VMware Work station? Well, the answer is “Routing and Remote Access“ in windows server. In my lab environment, I have a dedicated VM which acts like AD and DNS server (FYI, I use the same VM for provisioning my SAN storage as well). So, the very first step would be installing Remote Access server role by going to Add Roles/Features on my AD/DNS server.

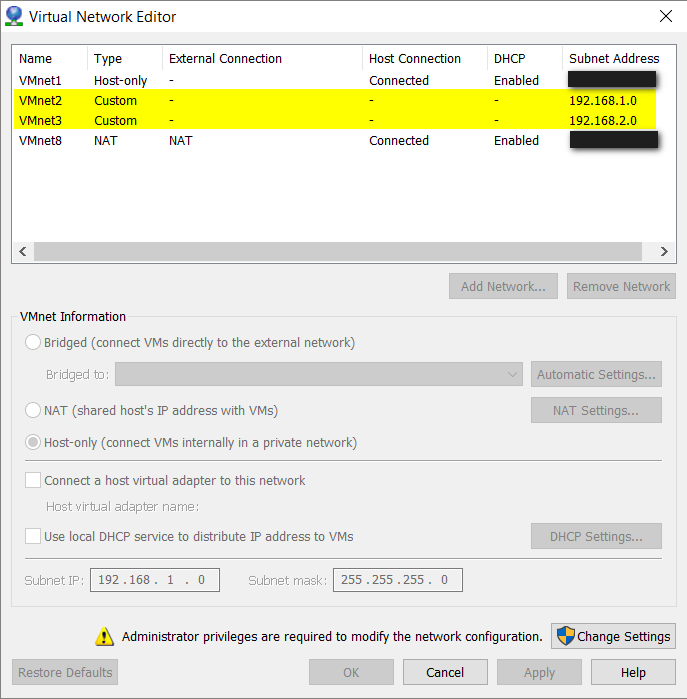

Note: I have already created two custom networks in my VMware environment as shown below using virtual editor.

Virtual network editor

Also, I have created 2 network interface cards on this VM as shown below.

Creating 2 network interface cards on this VM as shown below

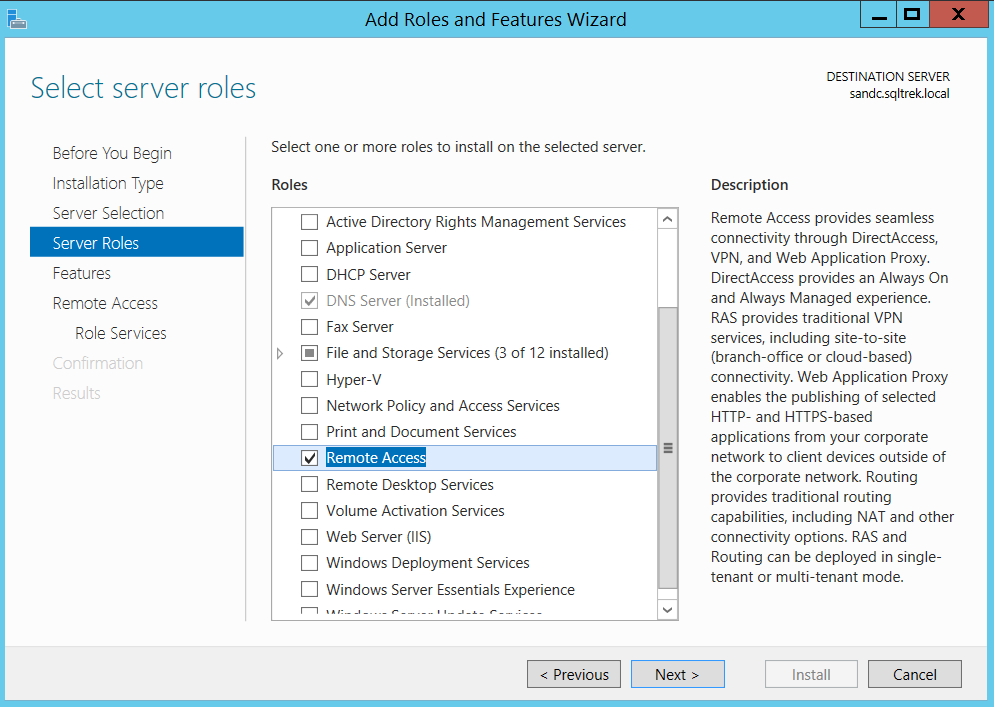

Once this is in place, go to server manager and navigate to new roles and features and select “remote access” as shown below.

Add Roles and Features Wizard - Remote access

Now click the Next button three times and you should be seeing a window where you get an option to select “Routing” as shown below.

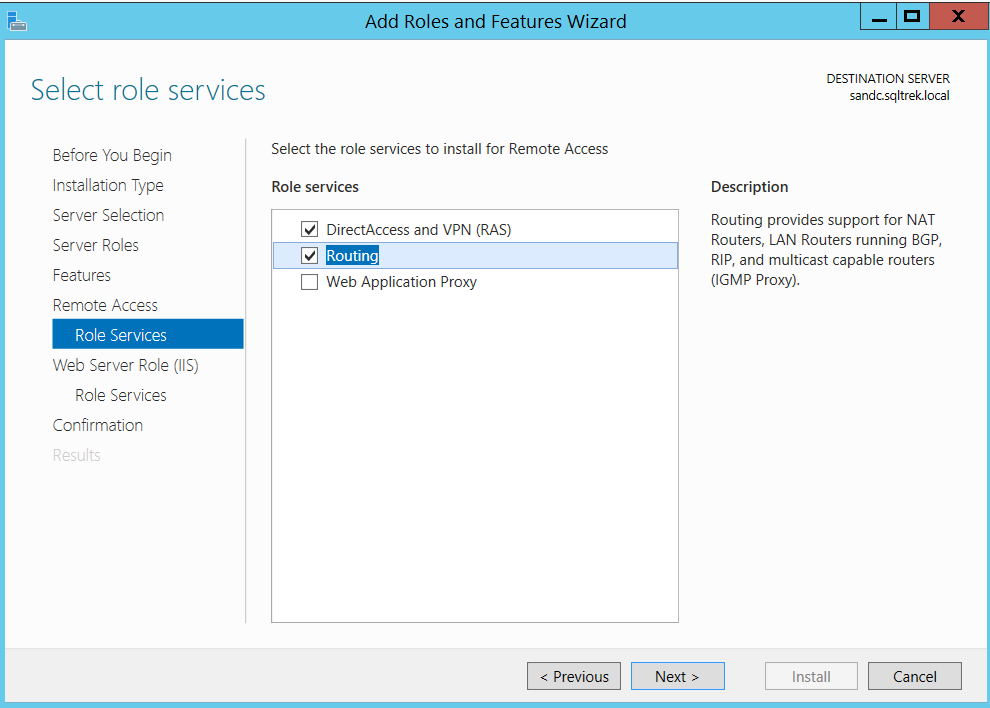

Add Roles and Features Wizard - Routing

By doing so, DirectAccess and VPN will be automatically selected, click next twice and you get to below screen.

Add Roles and Features Wizard - Remote access - Web Server

Again, all the required components are automatically selected by windows, just proceed to Next and finish the installation. After successful installation, I was able to search “Routing and Remote Access” as shown below from start menu.

Searching “Routing and Remote Access”

Open Routing and remote access config tool; right click on the root node and select “Enable and Configure Routing and remote access” as shown below.

Routing and Remote Access

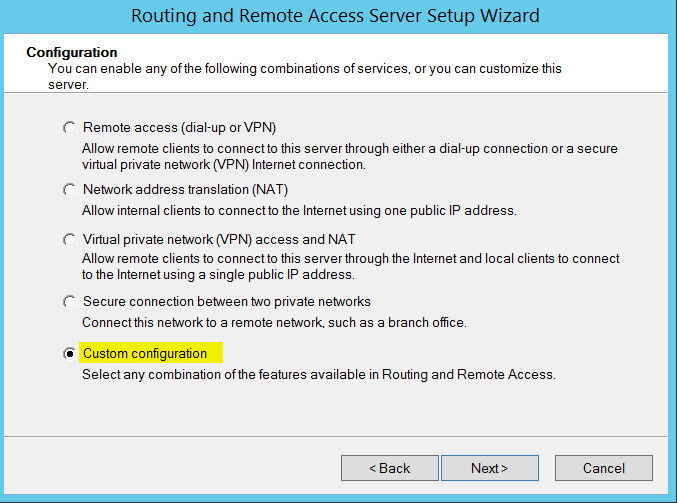

Click next and select custom configuration and choose “LAN Routing”.

Routing and Remote Access Server Setup Wizard - custom configuration

Routing and Remote Access Server Setup Wizard - LAN routing

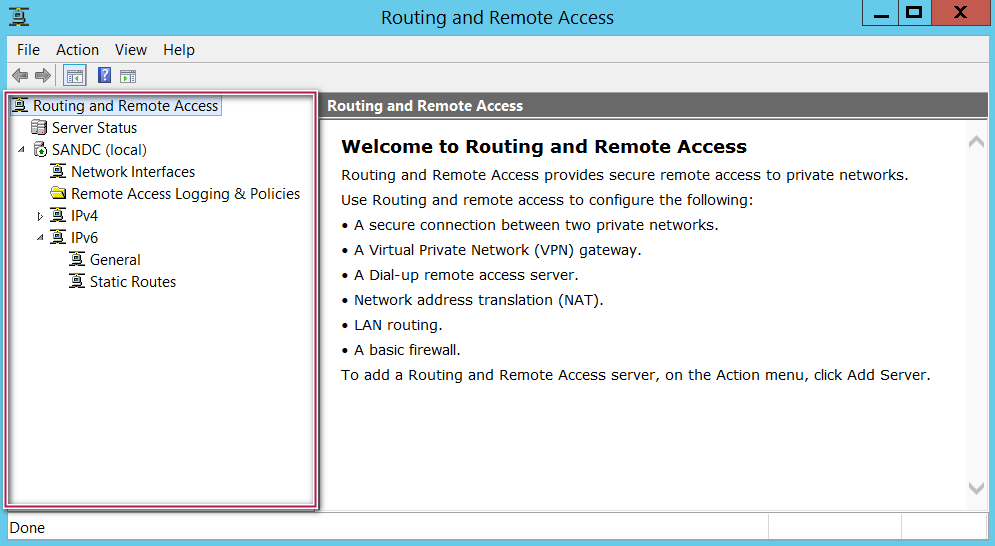

Click Next, finish and start the service and you should see the screen below.

Welcome to Routing and Remote Access

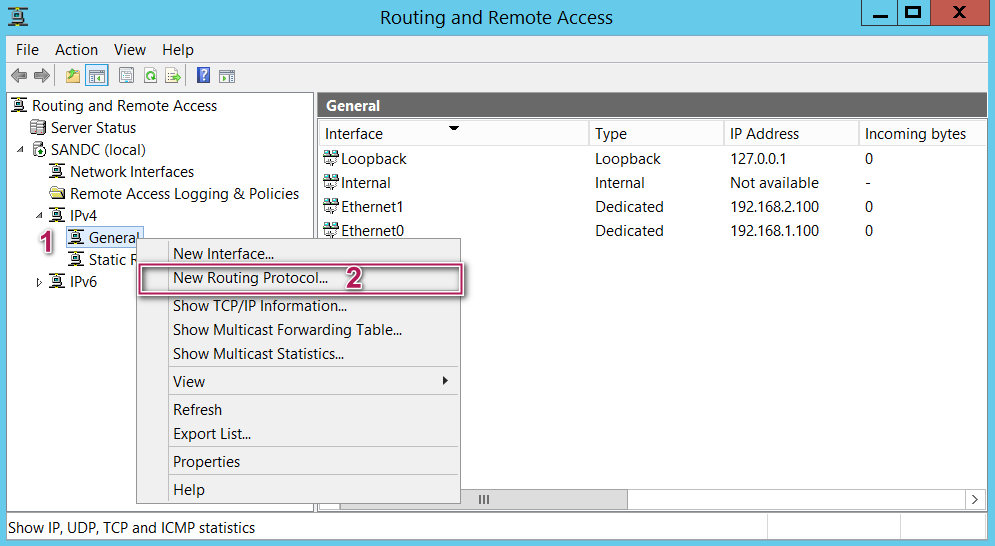

Here comes the interesting piece of the puzzle. You have to navigate to IPV4 section and under General right click and select “new routing protocol” and select “RIP Version 2 for Internet Protocol” as shown below.

Routing and remote access - New routing protocal

New routing protocal

After selecting finish, you should notice a new sub section called “RIP” under IPV4 section. Right click on the RIP under Ipv4 and select new Interface and select a NIC. In my case I chose my first network interface card (Eth 0) and clicked “okay” as shown below to begin with.

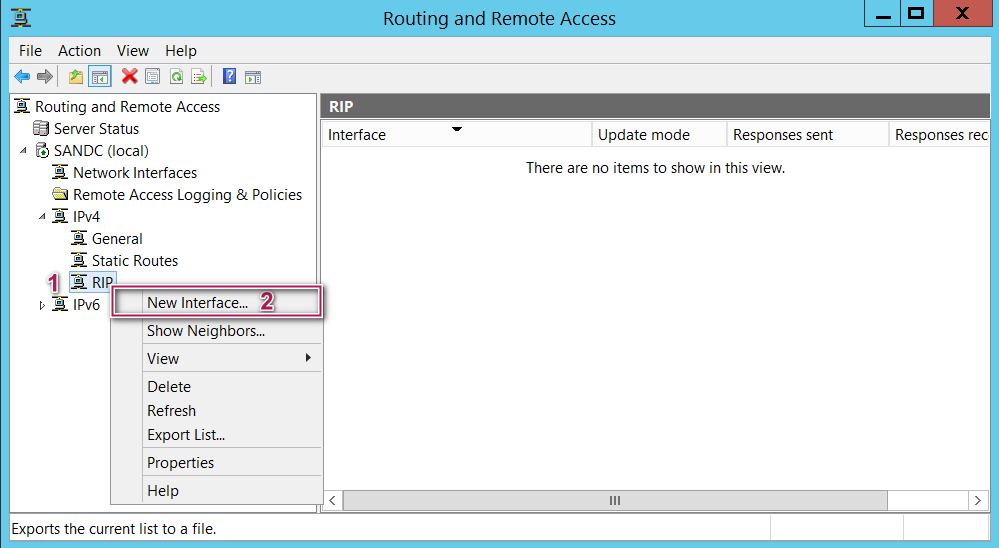

Routing and Remote Access - New interface

New interface for RIP Version 2 for internet protocal

Now you will see below screen, just accept the defaults and click okay again.

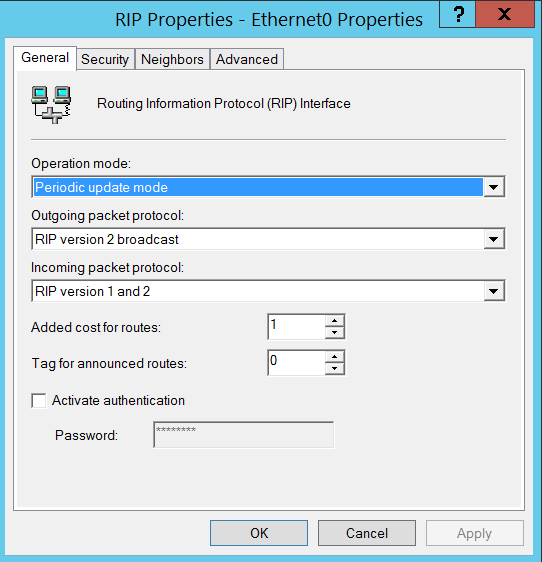

RIP Properties - Ethernet0 Properties

Repeat the same process for your second NIC. You can see, there is only one network interface card (Eth1) listed this time as the first one has already been added to routing.

New interface for RIP Version 2 for Internet protocol

With all the hard work we did, this is how my end product looks like. Basically, I made my “SANDC” virtual machine act as a router between my subnets, leveraging “Routing” software piece of windows operating system.

Routing and Remote access

Now let’s see what needs to be done on the actual VMs which will act as replicas in our cluster. As I said earlier, I will be creating 2 VMs (Let’s say “SQLTPA1” and “SQLTPA2”) in 192.168.1.X subnet and one VM (“SQLATL3”) in 192.168.2.x subnet and add them to my domain.

Note: I disabled windows firewall on every machine in my lab to make it simple and avoid issues with Ports.

On the first Virtual machine – SQLTPA1:

Go to the properties of the network card and set the Ipv4 address to 192.168.1.126. Set the subnet mask to 255.255.255.0 and the default gateway to 192.168.1.100. I chose the default gateway to be the IP address of NIC 1 on my SANDC VM (That’s where the Routing and Remote Access service is running in my lab).

Internet protocol Version 4 TCP/IPv4 - properties

Similarly, I setup my 2nd virtual machine on my production site to IP address 192.168.1.127, Set the subnet mask to 255.255.255.0 and the default gateway to 192.168.1.100.

On the third virtual machine – SQLATL3:

Go to the properties of the network card and set the Ipv4 address to 192.168.2.126. Set the subnet mask to 255.255.255.0 and the default gateway to 192.168.2.100. I chose the default gateway to be the IP address of my second NIC on my SANDC VM (That’s where the Routing and Remote Access service is running in my lab).

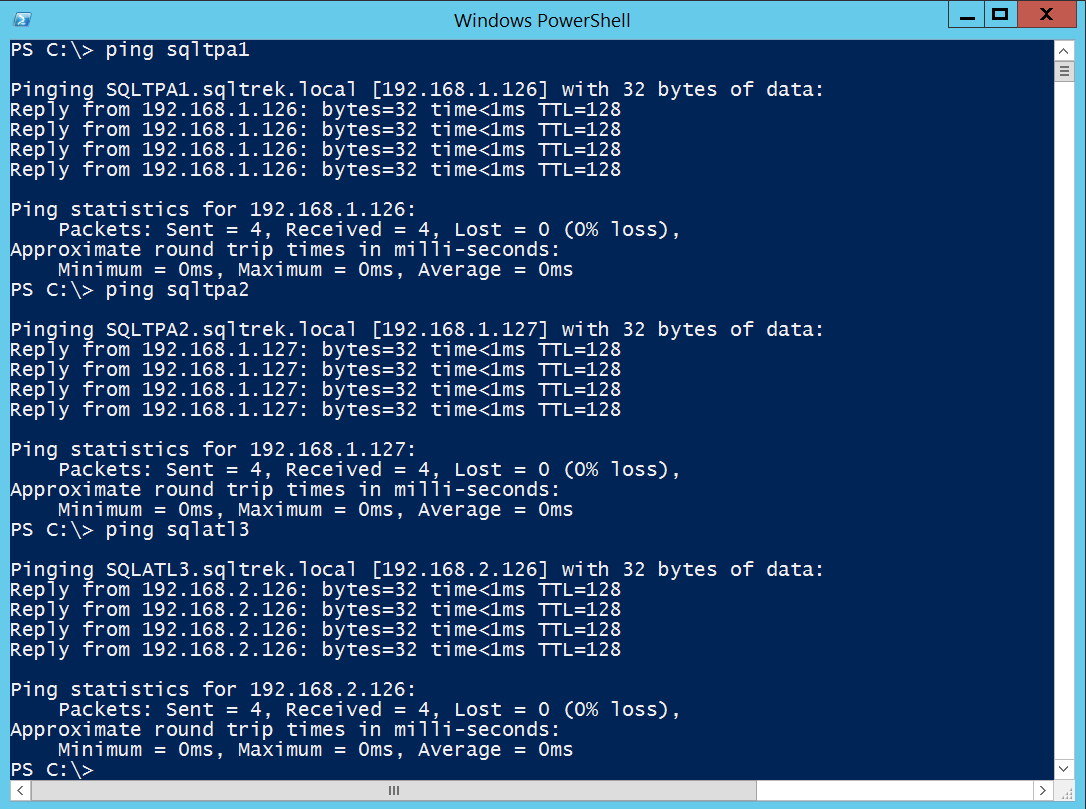

Let’s validate all my configuration settings done so far.

From SANDC machine:

Let’s validate all my configuration settings done so far.
From SANDC machine:

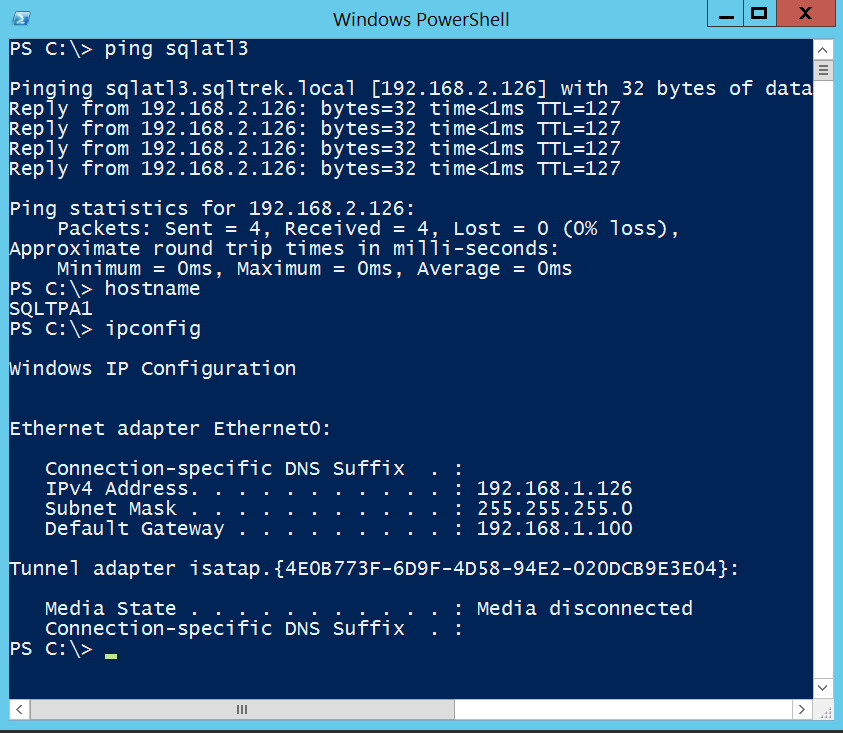

Ping test from SQLTPA1 to SQLATL3:

Ping test from SQLTPA1 to SQLATL3:

Ping test from SQLATL3 to SQLTPA1:

Ping test from SQLATL3 to SQLTPA1:

Perfect, we did it. This is how we can setup a lab environment in VMware workstation simulating multiple subnets. Just wanted to make sure before wrapping up this section of our lab setup, this is not something how windows/network admins would setup routing in real world production environments. We would be having a real physical hardware router instead of routing service in windows server 😊, with separate subnets residing in different physical locations (Data Centers) and with a H/W firewall device set with proper rules in place.

So far, we did a walkthrough of setting up a foundation in a lab environment for creating Always On Availability groups spanning multiple subnets. Now, let’s build an actual multi subnet windows failover cluster making these machines as nodes and then build an Always On availability group on top of it and explore what and how is it different from an Always On availability group spanning in a single subnet.

Installing and setting up WSFC (Windows Server Failover Clustering):

In the previous section of this article, we took care of networking piece of the puzzle for creating a multi subnet cluster in a lab environment using VMware workstation, leveraging windows server routing services. Now, let’s get into the actual fun part of creating an Always On availability group simulating multiple data centers, two near replicas in one subnet serving high availability and a far replica serving disaster recovery purposes in a different subnet. Okay, let’s get started.

First thing first, we have to install failover clustering feature on all the three nodes which will be participating in our Always On Availability groups. I logged in to all my VMs as a domain admin (I don’t want to deal with permission issues now for setting up my lab) and went to server manager and navigated to “Add roles and features” and selected “Failover Clustering” as shown below.

Add roles and features wizard - Failover clustering

Windows will automatically select all the required sub components as needed, just click on Next and Install.

Add roles and features wizard - Failover clustering - confirm installation instructions

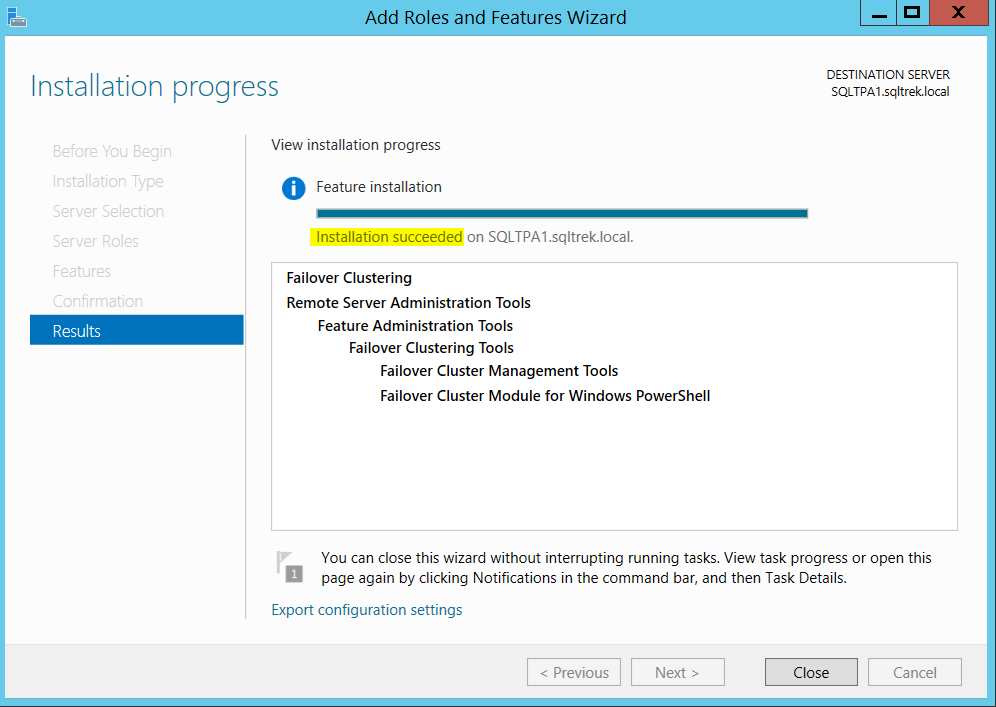

After few seconds, I got the below confirmation.

Add roles and features wizard - Failover clustering - view installation progress

Well, Once I am done with installing failover clustering feature on all my three virtual machines (SQLTPA1, SQLTPA2 and SQLATL3) it’s time to build our cluster.

Step 1:

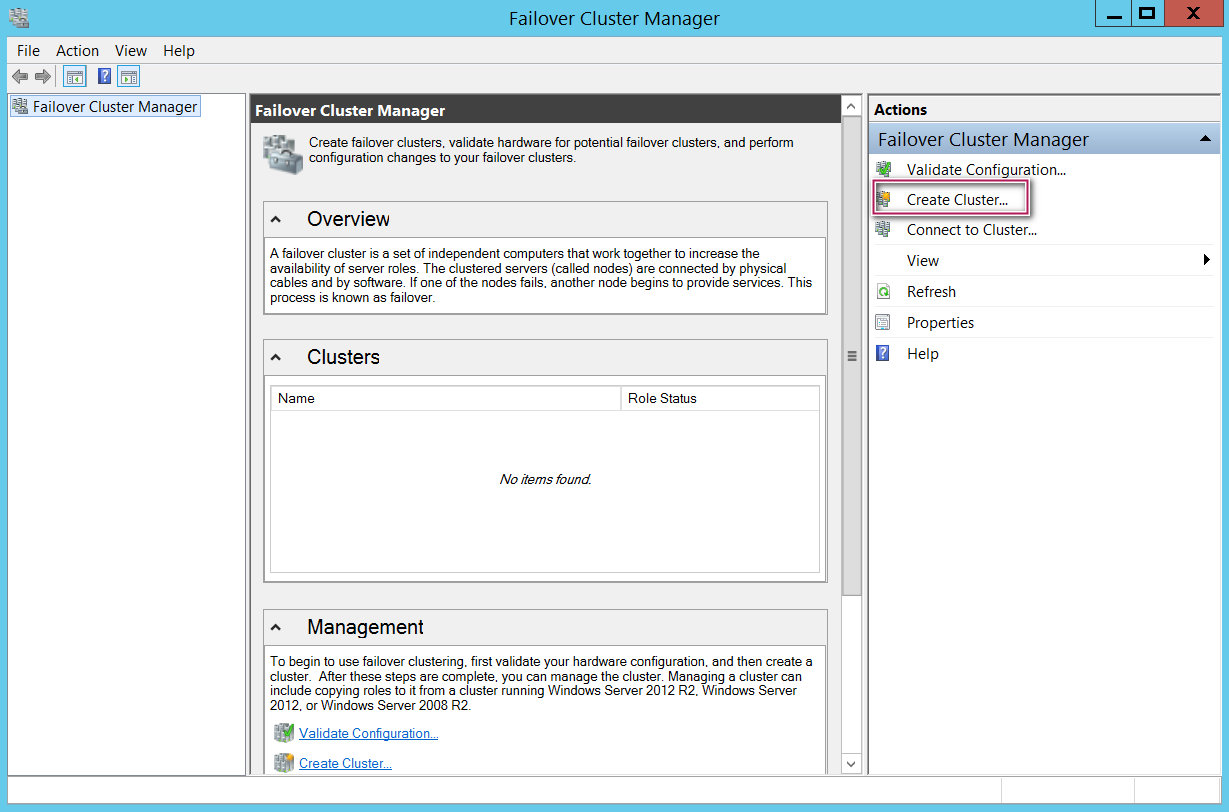

On my SQLTPA1 machine, I opened Failover cluster manager application and selected “Create cluster” as shown below.

Failover cluster manager

Step 2:

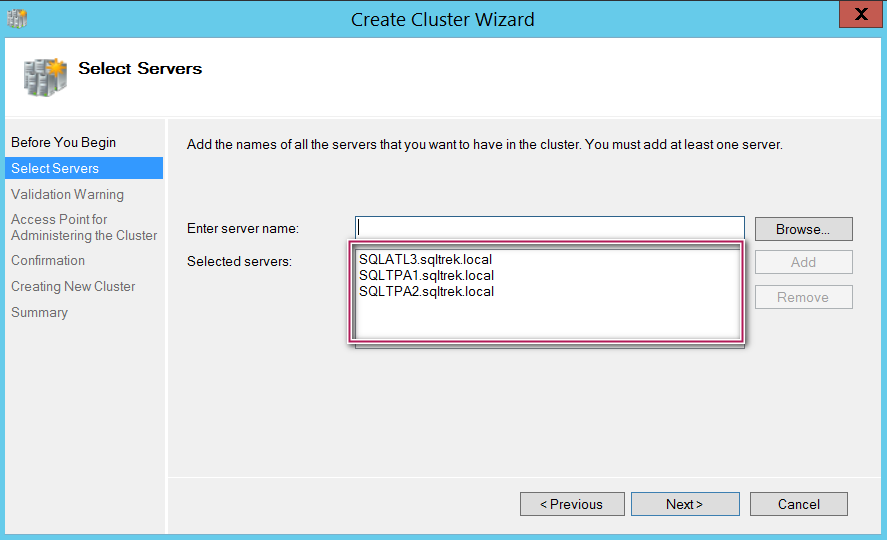

Added all the three nodes by providing FQDN as shown below and click Next.

Create cluster wizard - select servers

Step 3:

I chose to run validation tests, it’s not mandatory to run these tests but It’s highly recommended to run these tests to identify potential issues with our environment.

Create cluster wizard - validation warning

I skipped storage tests in this case as I won’t be setting up a traditional SQL server failover cluster for this lab purposes with clustered shared LUNs. (We don’t need shared disks for setting up Always On Availability groups). Well, below is how my validation results looked like, Again…I am not worried about warnings related to storage at this point.

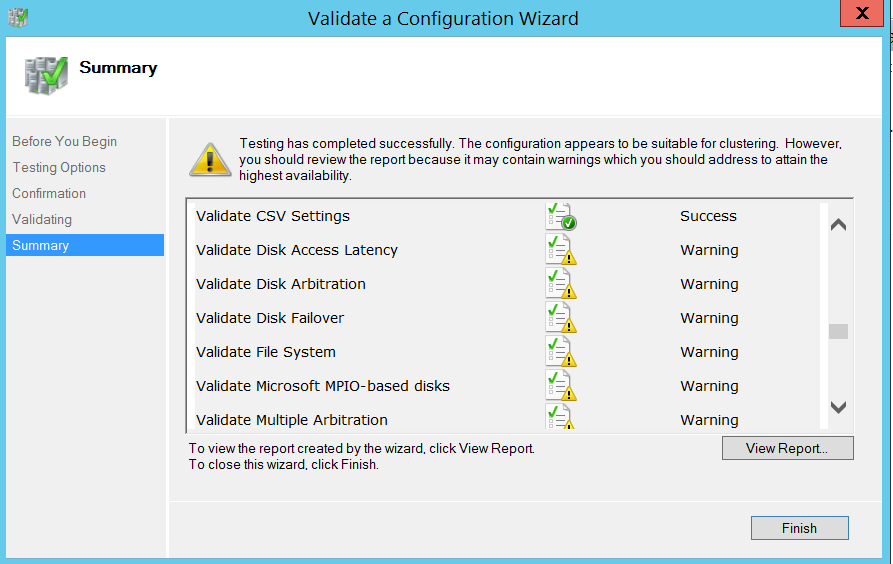

Validate a configuration wizard

Step 4:

I gave a name to my cluster and provided IP addresses, one for each subnet as shown below.

Create a cluster wizard - access point for administering the Cluster

Unchecked “Add eligible storage” and proceed to Next.

Create cluster wizard - confirmation

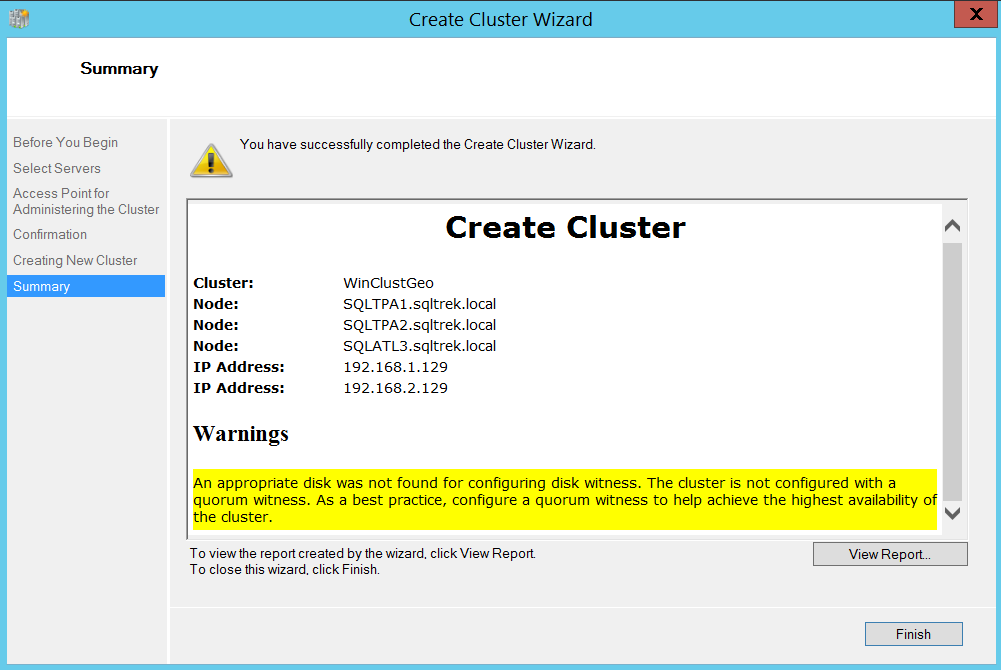

This completes the process of setting up cluster, as you can see in the below screenshot, I got a confirmation after few seconds.

Create cluster wizard - summary

Tadah!!! Yup, It’s really that simple. You can see the create cluster wizard being nice to us and reminding us about Quorum configuration which is the most important piece of any failover cluster setup. After all Quorum is one which dictates the availability and health of a failover cluster and all the dependent Applications/Roles and Services.

Okay…. Now, Let’s see how to create a Quorum. Connect to the cluster and navigate to “configure cluster quorum settings” as shown below.

Failover cluster manager

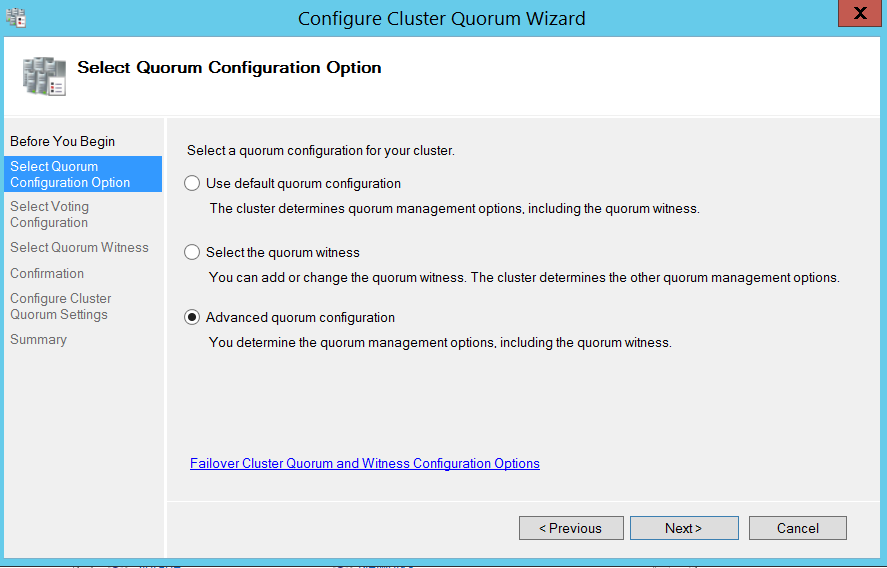

Select advanced configuration option as shown below. (See the reason why in the next step)

Configure cluser quorum wizard - Select quorum configuration options

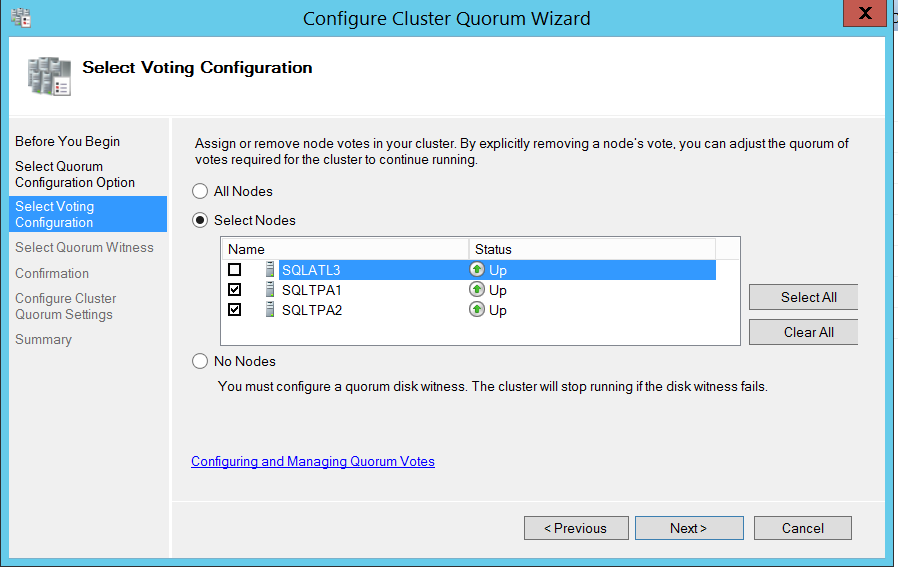

As you can see in the below screenshot, I un selected the node which is in my DR subnet. The idea is basically to avoid remote machine sitting in my DR data center deciding the health of my cluster (Doing this will ensure my DR replica vote doesn’t count to decide health of my production replicas), so I removed its vote by unchecking my DR node.

Configure cluser quorum wizard - select voting configuration

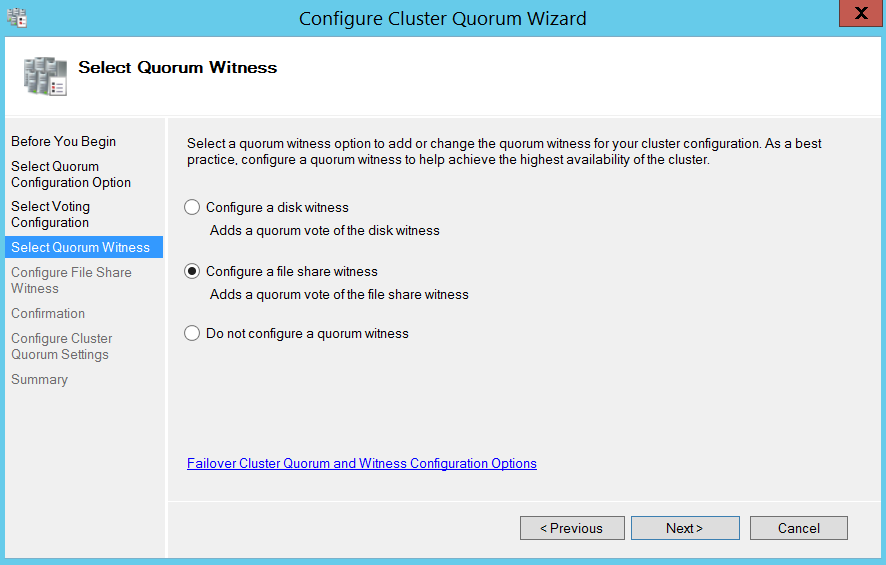

Now I chose to use file share witness. (I already have a shared folder which I will be using as a file share witness for this lab setup.)

Configure cluser quorum wizard - select quorum witness

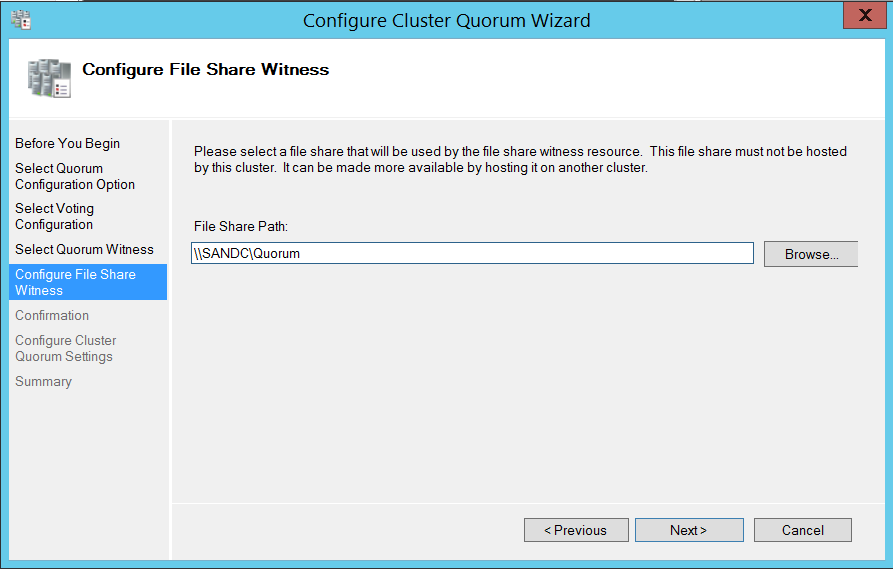

Configure cluser quorum wizard - configure file share witness

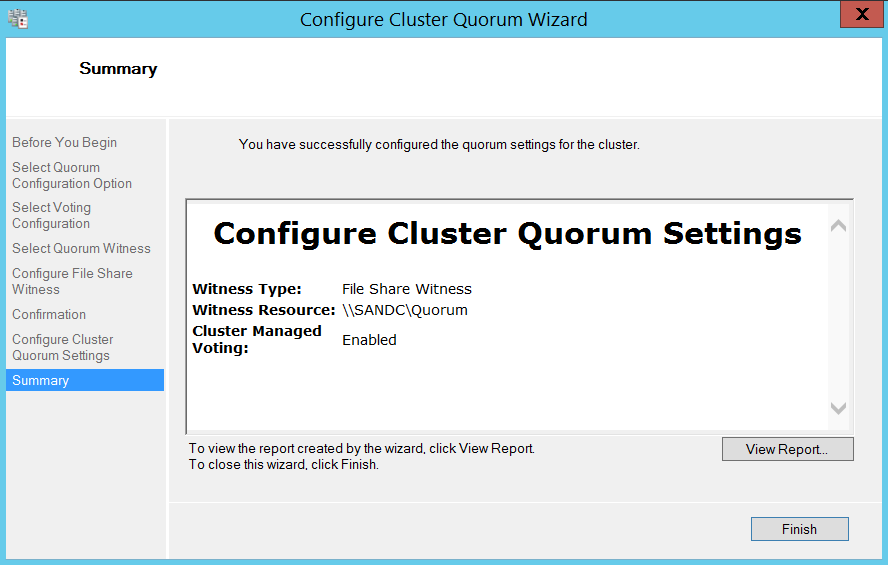

Configure cluser quorum wizard - summary

This completes creating failover cluster. Now it’s time to install SQL Server on all the three nodes.

Note: I am not going to cover how to install a standalone SQL Server instance in this article. I went ahead and installed SQL Server 2017 RTM on all the three nodes along with SQL Server Management Studio.

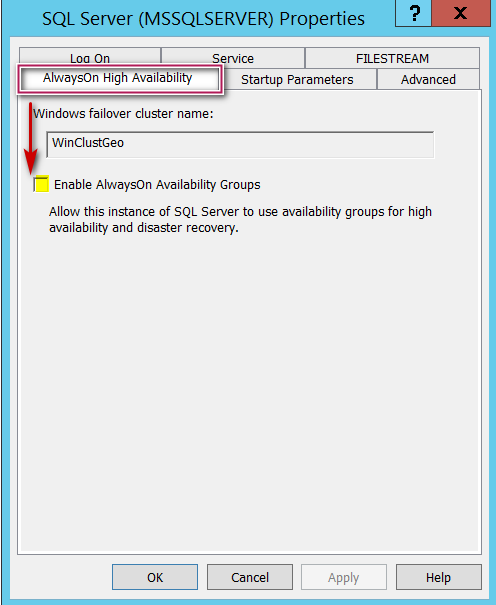

Once the installation is complete, now it’s time to enable “Always on high availability” feature by going to SQL Server Configuration manager and navigating to properties of the SQL Instance as shown below.

Enable “Always on high availability” feature by going to SQL Server Configuration manager and navigating to properties of the SQL Instance as shown below

Restart SQL Server services and we are all set at this point. Once AG feature is enabled on all the nodes (I will refer them as Replicas from now on), we can go ahead and create Always On availability groups.

Creating Always On Availability Groups and Listeners:

For this demo purpose, I created four databases “Packers”, “Bears”, “Steelers” and “Ravens”. I will be creating an Always On availability group (AG) called “AG_NFCNorth” and place Packers and Bears in it and an AG called “AG_AFCNorth” for Steelers and Ravens databases, the respective listeners will be “list_NFCNorth” and “list_AFCNorth”.

Okay, below screenshot shows how it looks like to begin with:

Nothing fancy so far. Now on my SQLTPA1 node, I went to Always On High Availability folder in object explorer and selected “New Availability group wizard”. I gave a name to my AG as mentioned earlier and selected “Database level health detection” checkbox (This check is not mandatory).

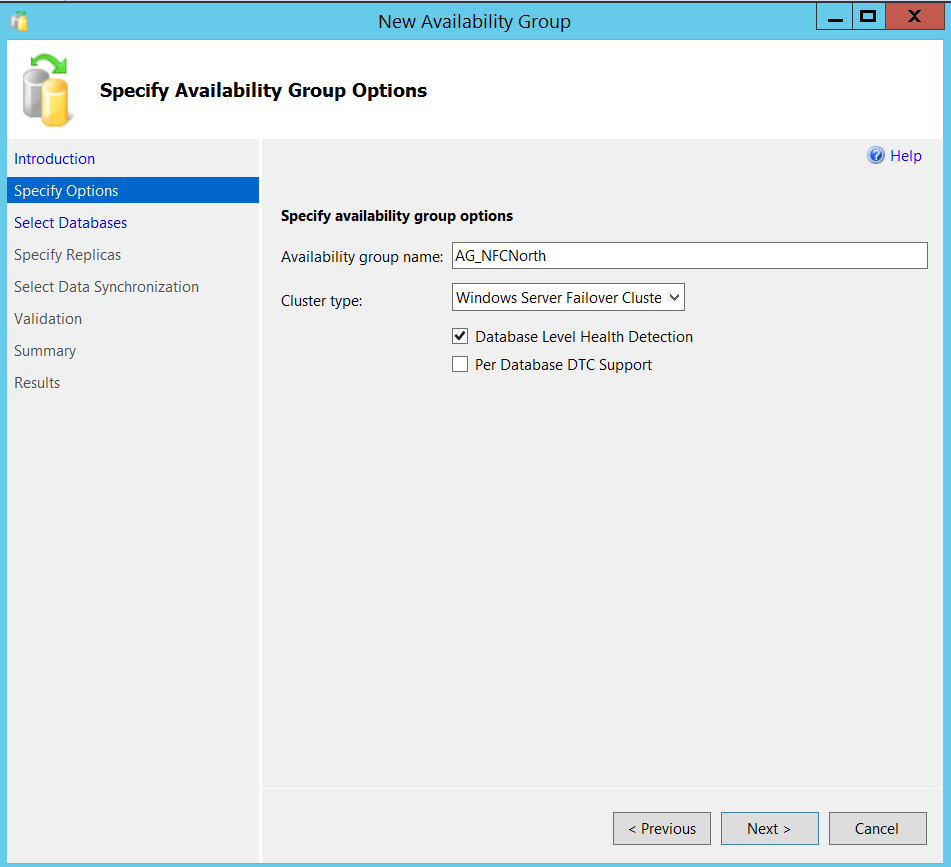

New SQL Server Always On availability group - specify options

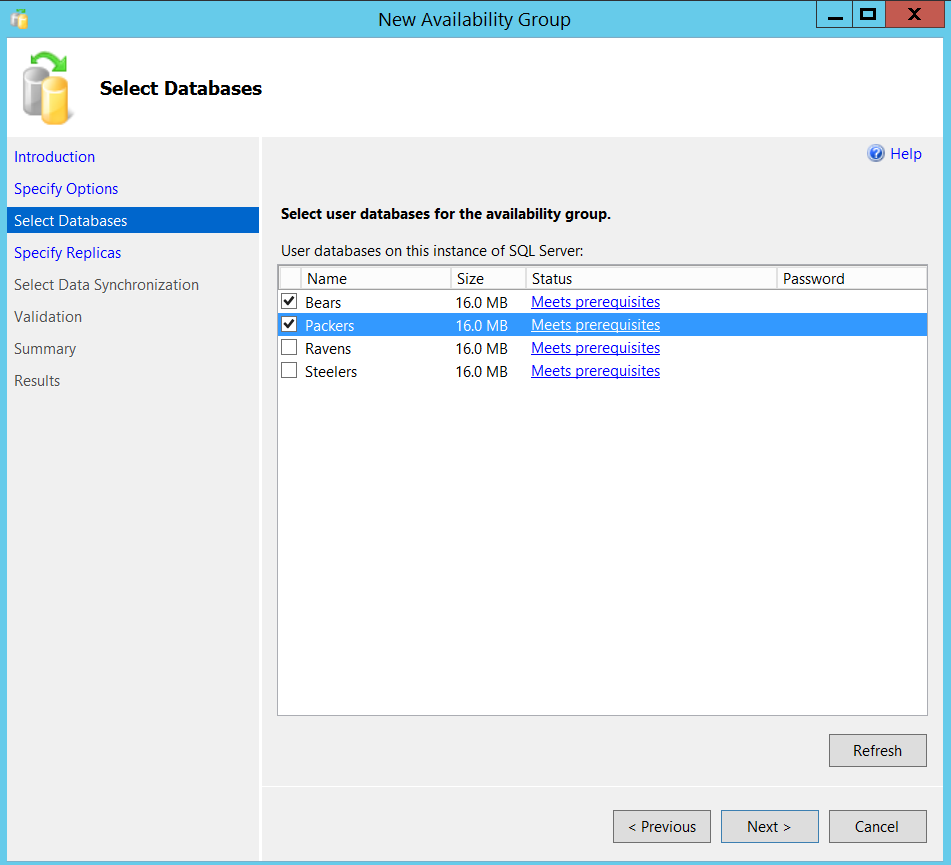

Now, made sure my databases meet prerequisites (Full recovery model and at least one full backup) and selected Packers and Bears databases.

New SQL Server Always On availability group - select databases

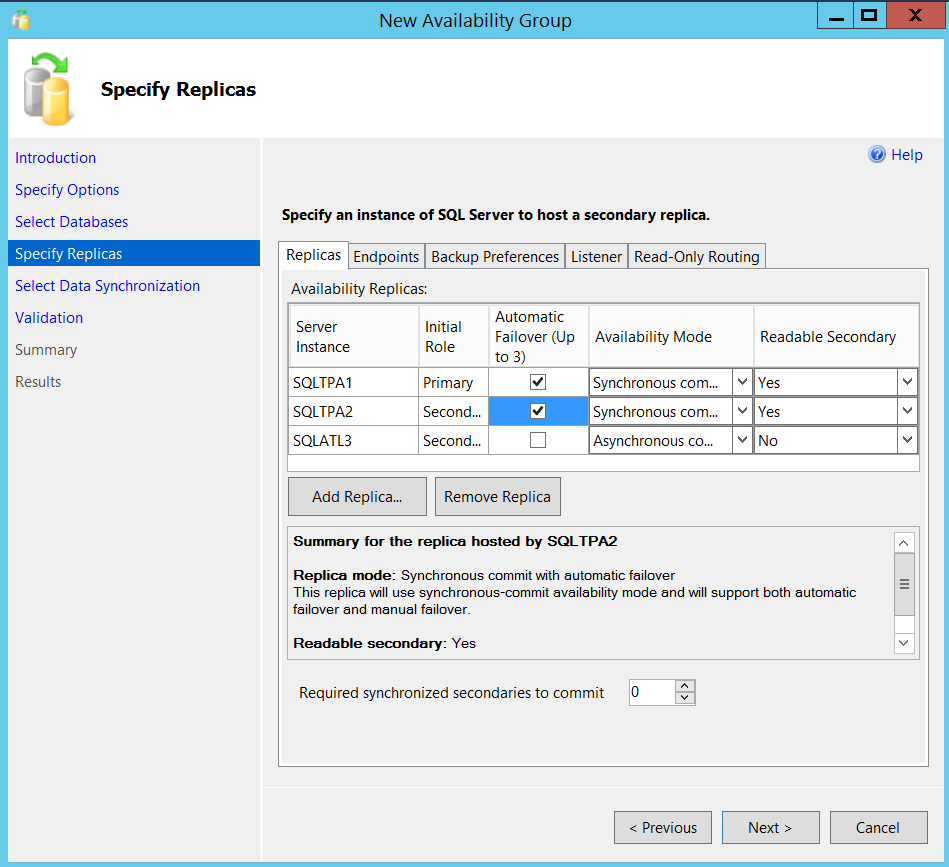

After adding the required databases, time to specify all our replicas as shown below.

New SQL Server Always On availability group - specify replicas

I left default values for Endpoint and Backup preferences for this lab setup. You can tweak Backup preferences, like giving priorities for replicas and selecting where to run the backups etc as per your requirements. The one which I would like to stress here for our multi subnet cluster lab setup is “Listener” tab.

Note: You can go ahead and skip creating listener at this point and come back later after creating Always On availability group if needed, it’s not mandatory to create listener at this stage.

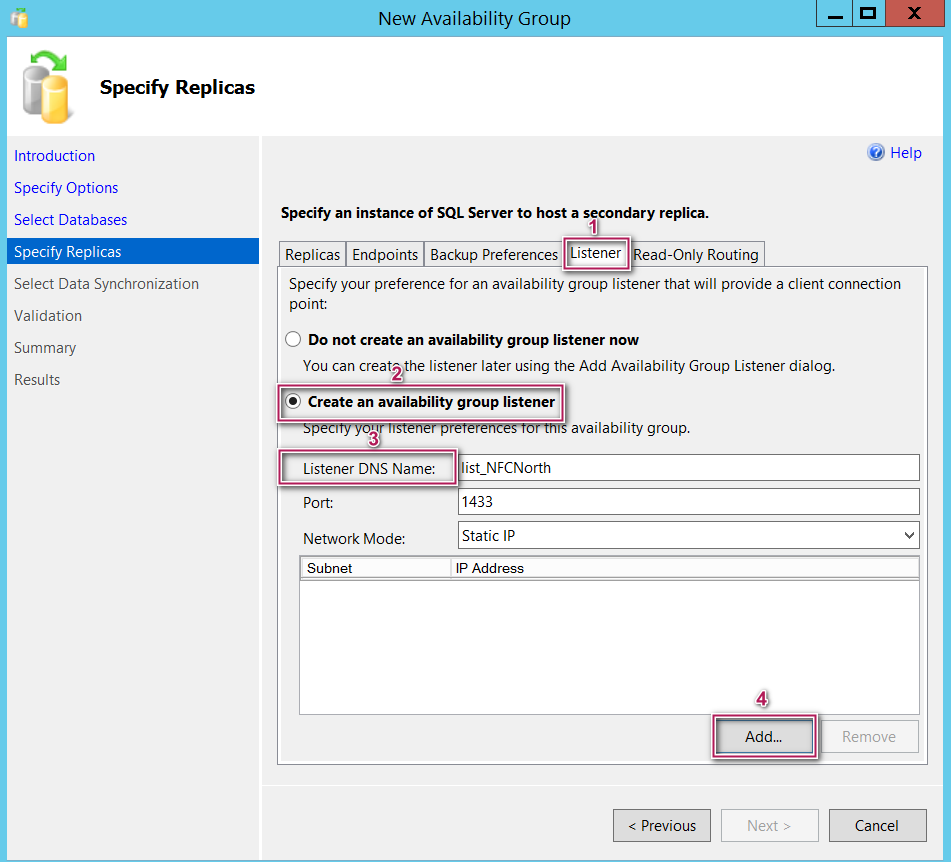

Now, under listener tab, I gave a DNS name for my listener as I mentioned earlier (lsit_NFCNorth).

NewSQL Server Always On  availability group - specify replicas - listeners

For step 4 (Assigning IP to listener), since this AG is spanning across multiple subnets, we have to provide two IP addresses one for each subnet. This is the part which differs from creating a listener in an AG setup in single subnet.

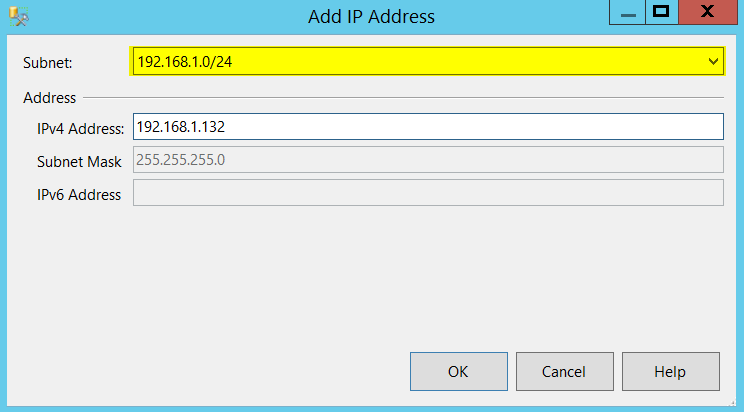

After clicking on Add button in the above screenshot, I provided an IP for 192.168.1..x subnet as shown below.

Click OK and now click on ADD button one more time and provide IP address for your second subnet as shown below.

Once I am done with adding two IP addresses, below is how my wizard looks like at this stage.

New SQL Server Always On Availability group - Specify replicas - Network Mode

You can see both the IP addresses in the above screenshot, one from each subnet tied to my listener. Click Next and choose how to join the database in Always On availability group. In my lab I have a shared folder which I plan to leverage for this purpose as shown below.

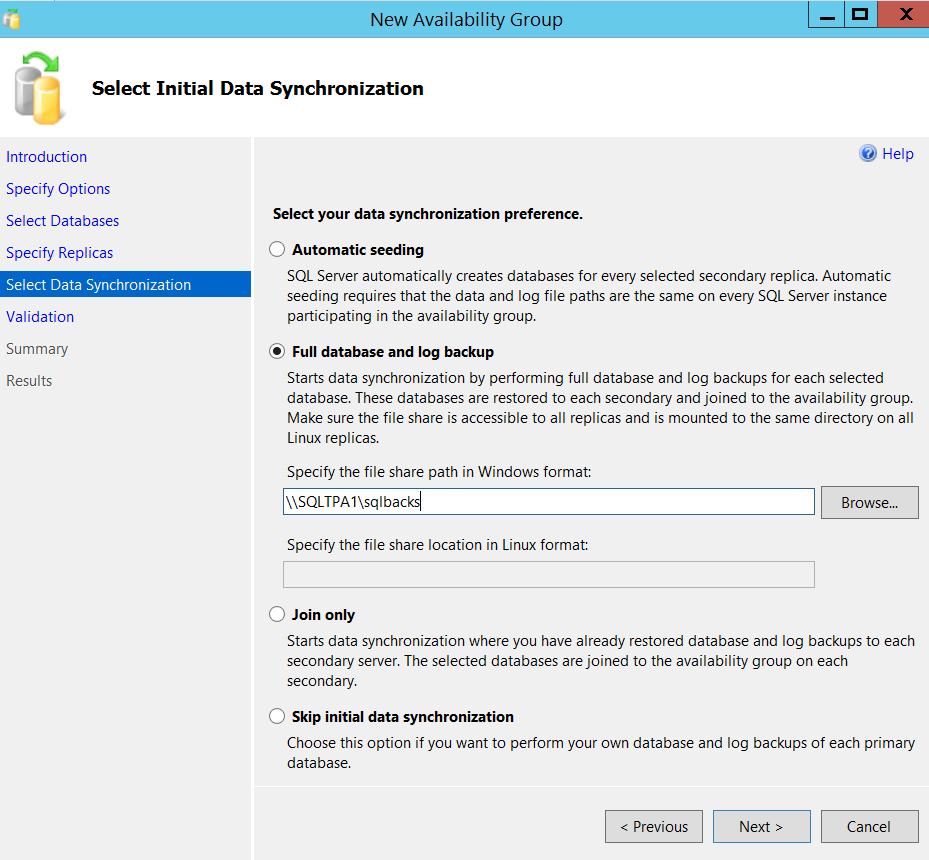

New SQL Server Always On availability group - select data synchronization

Proceed to next and make sure the validation report is all green as shown below and go to Next and Finish.

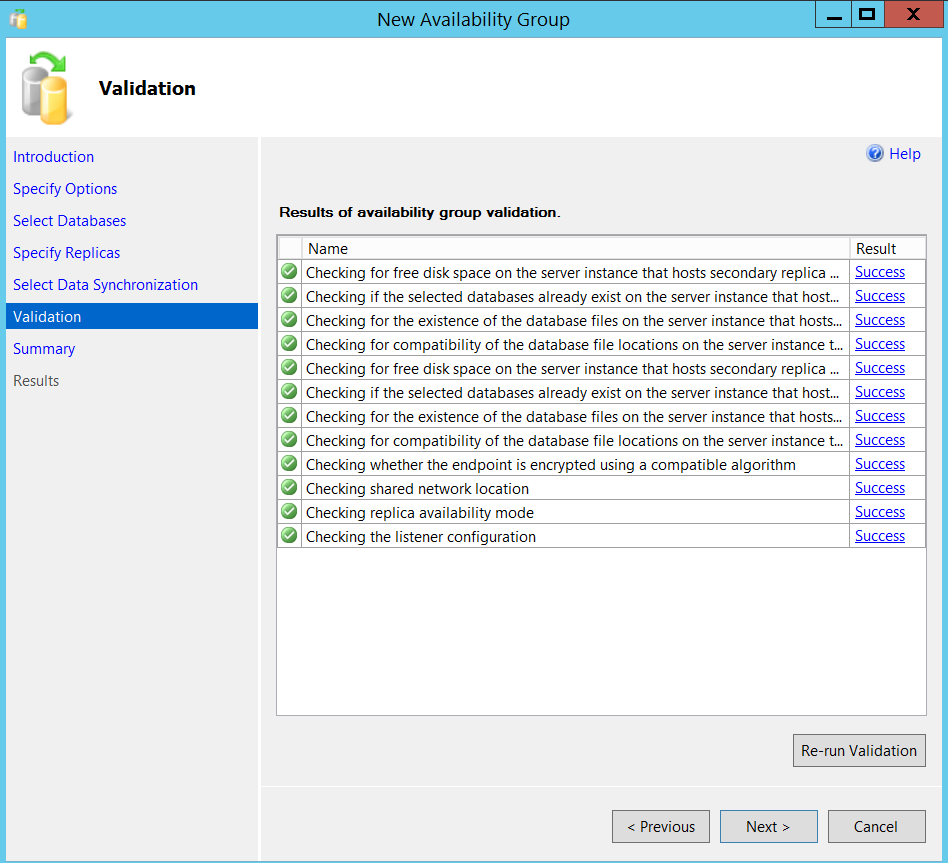

New SQL Server Always On availability group - validation

It just took couple of minutes for me in my lab setup for this entire process, remember my databases are pretty much empty.

I followed the same steps to create my second AG (AG_AFCNorth) and a corresponding listener (List_AFCNorth). When am all done, this is how everything looks in my lab from my SSMS.

Now, Let’s see how things look from Failover Cluster manager. Before going any further, let me tell you that I failed over my “AG_AFCNorth” to my DR site (192.168.2.x). I did this on purpose to show you how things will look depending on which subnet the AG is currently residing in.

See below screenshots where under List_AFCNorth, the IP 192.168.1.x shows offline and for List_NFCNorth, the IP 192.168.2.x shows offline.

Failover cluster manager

Failover cluster manager

This is because at any given point of time, a listener can only be owned by one subnet. The IP will be online/offline depending on which subnet the listener is currently residing on.

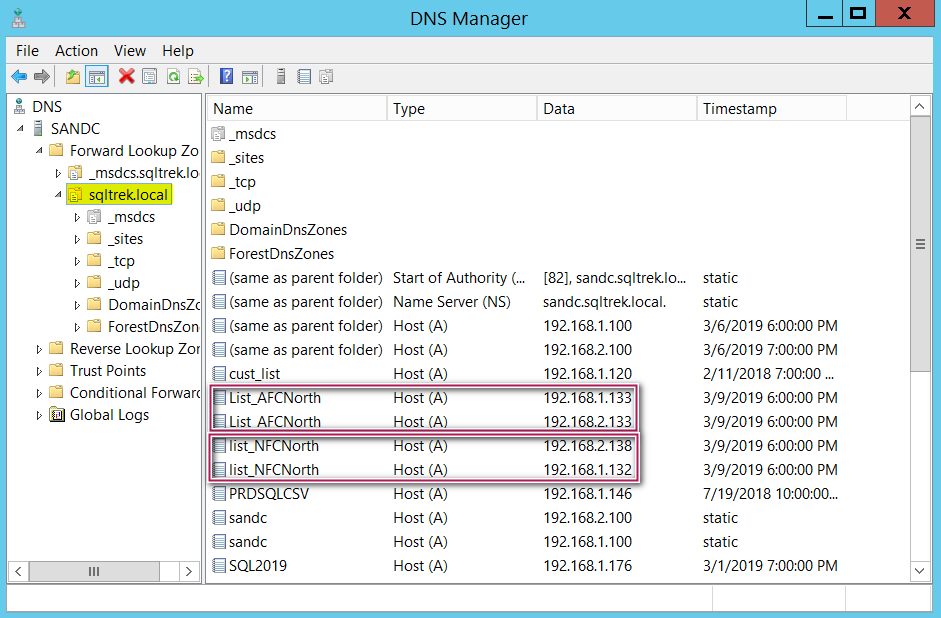

Now let’s see how it looks on my DNS. I opened DNS manager on my SANDC machine and expanded Forward lookup zones and went to my domain “sqltrek.local” as shown below.

DNS manager

As you can see, we have two A records being created for each listener, one under each subnet. This is very similar to what we would see for the virtual network name if we were to build a traditional failover cluster spanning across multiple subnets.

That is it folks! I hope this article helps you in setting up a lab simulating multiple data centers. With this setup in place, now I can experiment and learn things on how my AGs are different when spanning across multiple sites. I can reproduce issues, simulate application connectivity, practice patching, practice failover/DR testing and what not right here in my personal laptop 😊
