SSIS package executed successfully without throwing exception

An overview of the VS_NEEDSNEWMETADATA SSIS exception

May 13, 2021 by

In this article, we will briefly explain the VS_NEEDSNEWMETADATA SSIS exception, one of the most popular exceptions that an ETL developer may face while using SSIS. Then, we will run an experiment that reproduces this error. Then, we will show how we can fix it.

What is the VS_NEEDSNEWMETADATA SSIS exception?

The keyword VS_NEEDSNEWMETADATA is a constant used in the DTSValidationStatus enum defined in the SQL Server Integration Services (SSIS). This enumerator specifies the return value of an SSIS component validation function.

As mentioned in the official SSIS documentation, the DTSValidationStatus enum constants are defined as the following:

Constant

Value

Description

VS_ISBROKEN

1

The component is incorrectly configured; typically, this indicates that a property is set incorrectly

VS_ISCORRUPT

3

The component is irreparably damaged and must be completely reset. The designer calls the component’s ProvideComponentProperties() method in response

VS_ISVALID

0

The component is correctly configured and ready for execution

VS_NEEDSNEWMETADATA

2

The component’s metadata is outdated or corrupt, and a call to ReinitializeMetaData() will repair the component

Table 1 – DTSValidationStatus enum

In the SSIS Data Flow Component validation documentation, the VS_NEEDSNEWMETADATA value is mentioned as a return value of the Validate() function used to validate the SSIS component. They mentioned that a VS_NEEDSNEWMETADATA SSIS exception indicates that an error exists in the component metadata and that the component can repair the errors. This value indicates that the component contains the code that detects and corrects the validation problems. The component should repair the error in a call to the ReinitializeMetaData() method defined in the SSIS designer.

Reproducing the VS_NEEDSNEWMETADATA SSIS exception

In this section, we will create an Integration Services package and reproduce the exception. Noting that all experiments are running using Visual Studio 2019 and SQL Server 2019.

Let us assume that we were asked to build an SSIS package that reads from a table containing the customer information as following:

  • FirstName (String, length = 50)
  • LastName (String, length = 50)
  • BirthYear (Integer)

First, we open Visual Studio and created a new Integration Services project. Then we add a Data Flow Task to the package Control Flow. We added two OLE DB Connection managers for the Source and destination database.

Table 2 – Data Flow task screenshot

Let’s assume that after a while, the BirthYear column in the source customer table is renamed to BirthDate, and it is still stored as an integer. As an example, 1980 is updated to 19800101 (yyyyMMdd).

We can perform those actions by executing the following query:

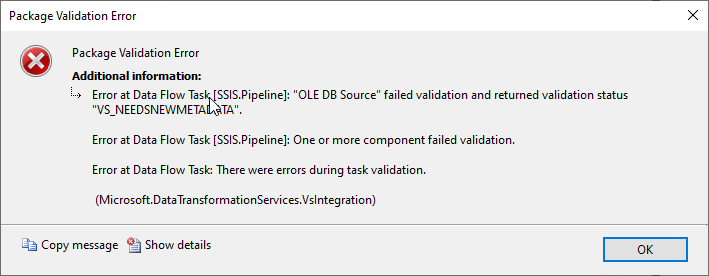

Now, let us try to open and execute the package. The following package validation exception is thrown with the following error message:

Error at Data Flow Task [SSIS.Pipeline]: “OLE DB Source” failed validation and returned validation status “VS_NEEDSNEWMETADATA”.

VS_NEEDSNEWMETADATA SSIS exception

Table 3 – VS_NEEDSNEWMETADATA exception

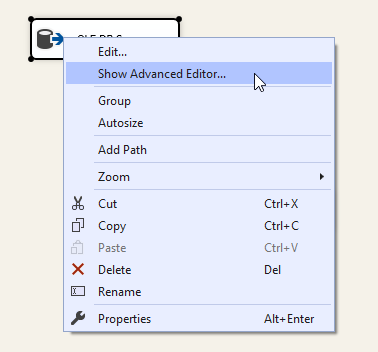

Before fixing this error, let us right-click on the OLE DB Source component and click on “Show the Advanced Editor”.

Opening the OLE DB Source advanced editor

Table 4 – Show Advanced Editor

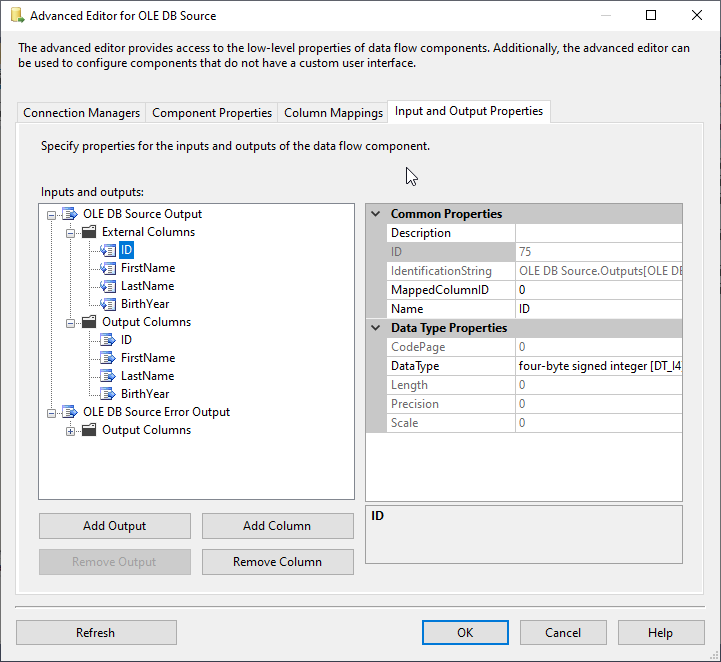

Now, let us go to the “Inputs and Outputs properties” tab. Under the OLE DB Source Output node, we will see that the source columns metadata is persisted within the OLE DB Source component. It will not automatically change once the correspondent column is changed in the source database.

OLE DB Source columns metadata

Table 5 – Advanced editor – Inputs and Outputs properties tab

How to fix the VS_NEEDSNEWMETADATA SSIS exception?

As mentioned in the first section, the VS_NEEDSNEWMETADATA SSIS exception indicates that the component contains the code that detects and corrects the validation problems. And that the component should repair the error in a call to the ReinitializeMetaData() method defined in the SSIS designer.

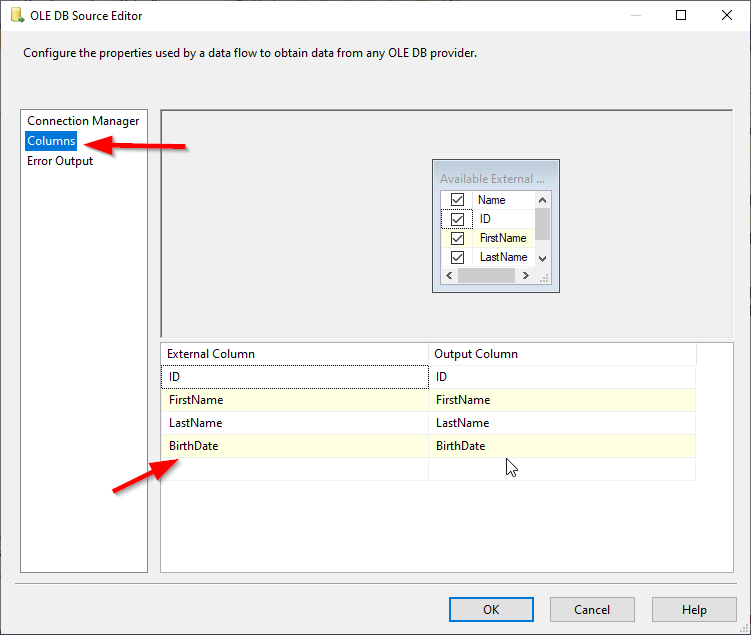

The ReinitializeMetaData() function is automatically called once we open the SSIS component and we navigate to the Columns tab (or the tab where the source metadata is defined).

Columns metadata is update automatically

Table 6 – OLE DB Source columns tab

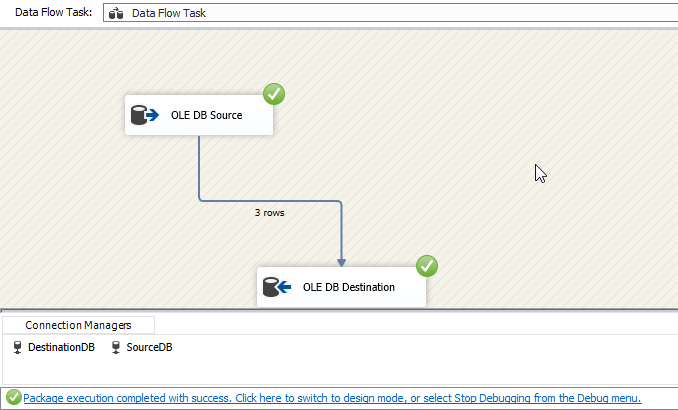

After ensuring that the source metadata is updated in the OLE DB source component, let us try to re-execute the package again.

SSIS package executed successfully without throwing exception

Table 7 – Package executed successfully

As shown in the image above, the package is executed successfully without making any complex configuration or changing any property. The component itself has fixed the VS_NEEDSNEWMETADATA SSIS issue.

  • Note:One important thing is to make sure that your SSIS designer is not switched to the offline mode. You can check that by right-clicking on the control flow background and check if the “Work offline” property is checked or not since the offline mode may prevent the SSIS component from reinitializing its metadata

Check if the SSIS designer is in offline mode

Table 8 – Check if the SSIS designer is in offline mode

Conclusion

In this article, we have explained what the VS_NEEDSNEWMETADATA SSIS exception is and when it is thrown. Then, we ran an experiment in order to reproduce this exception. Later, we showed how the SSIS component that throws this exception could fix itself by simply reinitializing its metadata.
